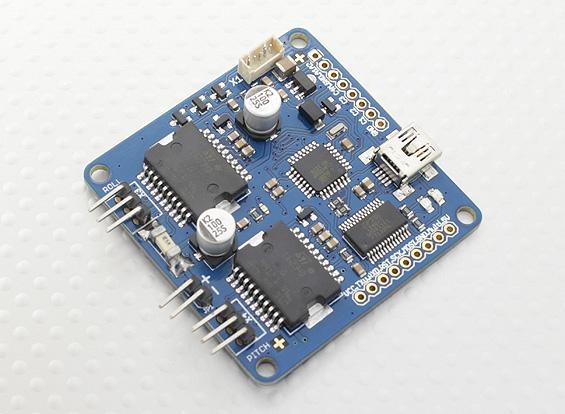

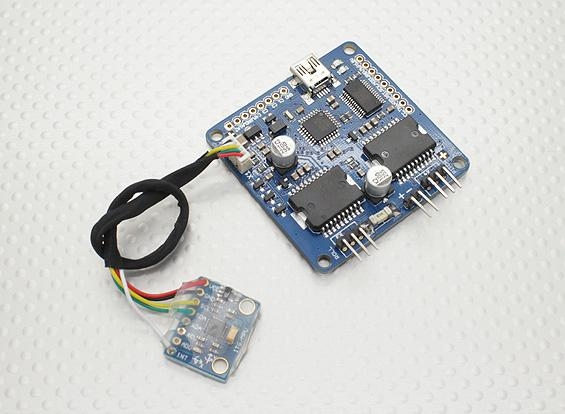

2-Axis Brushless Camera Gimbal Stabilization Control Board w/IMU

This is a brushless gimbal control board which utilizes a 6-axis gyro/accel with Motion Processing Unit to stabilize your camera gimbal while in flight. It offers highly precise and smooth brushless gimbal stabilization at a very low price.

Features:
• ATMega328P microcontroller
• Onboard FT232RL for debug
• 2~6 cells lipoly input
• Multiport
• UART port

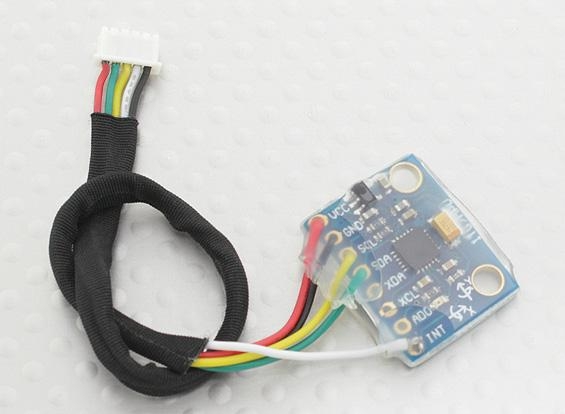

• MPU6050 6-axis gyro/accel with Motion Processing Unit
• On board logic level converter

Specs:
Dimensions: 50x50x9mm
Weight: 25g (including IMU board)
