Specification:
Brand Name: Skystars

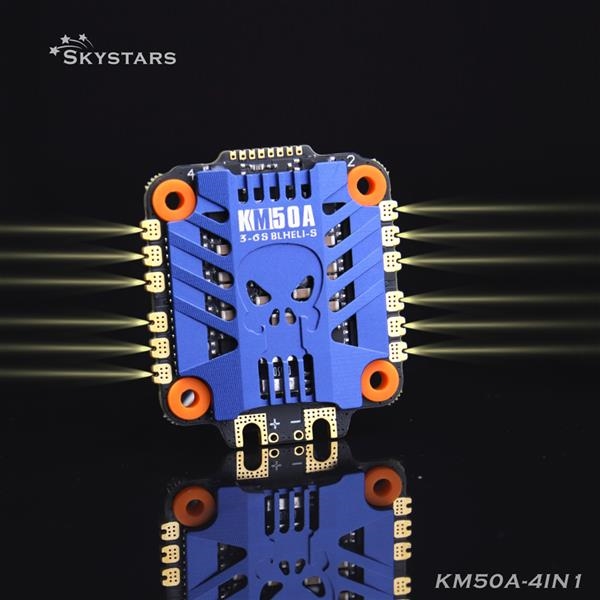

Model: Kramam KM50A
Item Name: 50A BLHeli_S 3-6S 4in1 Brushless ESC
Continuous Current: 50A
Burst Current: 60A≥ 10S
Working Voltage: 3-6S LiPo
Firmware: BLHeli_S
Support: Reversed Dshot 300/600
Firmware Version: 16.72(Q_H_25)
BEC: No
Size: 41x46x7.6mm
Weight: 17g
Features:
1. Excellent over-current capability.
By adopt the best PCB material and PCB production process.
Such as application of high TG materials , 3oz copper PCB & 2μm gold deposition process on PCB.
Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.
2. Extreme stably support 6S LiPo battery
By use of 24 pcs of new standard 40V 5x6 Mosfet & imported from USA or Japan electronic materials.
Plus advanced lead-free SMT Processing technology.
It make ESC can fully support 6s battery and get a better performance.
3. Excellent heat dissipation performance
The CNC hollow aluminum alloy shell use, Not only good for heat dissipation, but also get a beautiful appearance.
4. Better control performance
Flashed with Blheli_S 16.72 firmware in factory, support reversed Dshot 300 /600, make ESC have smooth control feel.
Package Included:
1x ESC
4x Sillcone ring M3X8mm
4x Sillicone ring M3X3.5mm
1x XT60 Connected Cable
1x Cable
1x 35V 560uF Capacitor
