Specification:
Brand Name: Skystars
Model: Kamam KM60A

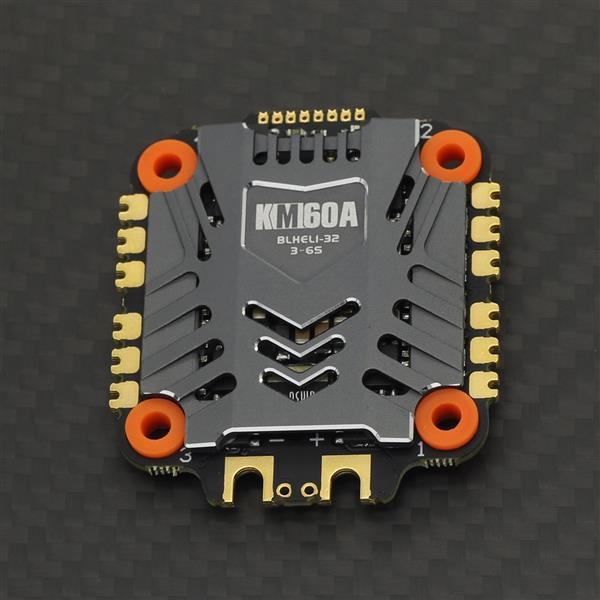

Item Name: 60A BLHeli_32 3-6S 4in1 Brushless ESC
Input Voltage: 3-6S LiPo
Con. Current: 60A
Burst Current: 80A≥ 10S
Firmware: BLHeli_32
Support: Dshot 600/1200
Mounting Hole: 30.5mm/M3
BEC: No
Size: 41*46*7.6mm
Weight: 18g
Features:
1. Excellent over-current capability.
By adopt the best PCB material and PCB production process.
Such as application of high TG materials , 3oz copper PCB & 2μm gold deposition process on PCB.
Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.
2. Extreme stably support 6S LiPo battery
By use of 24 pcs of new standard 40V 5x6 Mosfet & imported from USA or Japan electronic materials.
Plus advanced lead-free SMT Processing technology.It make ESC can fully support 6s battery and get a better performance.
3. Excellent heat dissipation performance The CNC hollow aluminum alloy shell use,
Not only good for heat dissipation, but also get a beautiful appearance.
4. Better control performance Flashed with the latest Blheli_32 firmware in factory,
support telemetry functions (including voltage ,RPMS & current )
Pacakge Included:
1 x Skystar KM60 60A 3-6S 4in1 ESC
4 x Damping Rubbers (M3x8mm)
4 x Damping Rubbers (M3x3.5mm)
1 x XT60 connector and wires
2 x 8pin wiring harness (1x 70mm,1x 50mm)
1 x 35V 560uf Capacitor
