This 5.8GHz Diversity LCD Screen offers the perfect solution for any 5.8GHz FPV system. It features its own in-built 2CH 5.8GHz A/V receiver, allowing it to receive directly from your FPV model's A/V transmitter! This means it can eliminate the need for expensive FPV goggles, or can be used simply as a way to display your FPV model's video for others to view as you fly.

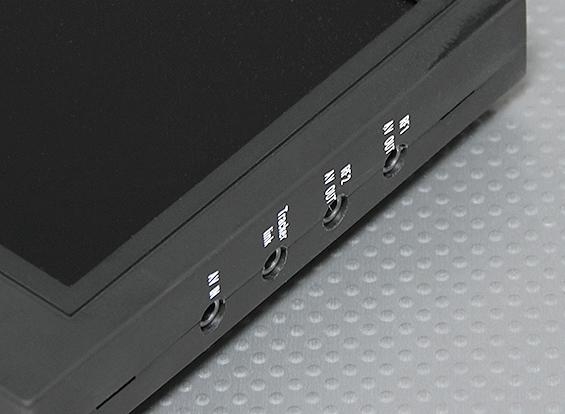

Featuring dual A/V outputs, this monitor is capable of outputting the signal of both RF channels at the same time. It also features an A/V input as well as a Tracker Link port.
Offering true 5.8GHz diversity, this device features automatic antenna switching to provide the best reception possible. A foldable screen shroud is included to optimize viewing in bright conditions.
Features:
• 800 x 480 High Resolution TFT LCD Screen
• In-built 5.8GHz Dual Switching Receiver
• Dual Buffered A/V Outputs
• Capable of Receiving 2 Different Channels Simultaneously
• Not Affected by 2.4GHz R/C Transmitter Signals
• Lightweight and Durable
• 9 Language Menu Selection
Working Frequencies:
CH1: 5705MHz
CH2: 5685MHz
CH3: 5665MHz
CH4: 5645MHz
CH5: 5885MHz
CH6: 5905MHz
CH7: 5925MHz
CH8: 5945MHz
Specs:
Screen Size: 7.0 inch
Screen Type: TFT LCD
Backlight Type: LED
Resolution: 800 x 480
Brightness: 450cd/m²
Contrast: 500:1
View Angle: 140/120° (Horizontal/Vertical)
Working Voltage: DC 7~12V or 11.1V lipoly battery
Working Temperature: -10°C ~ +65°C
Power Consumption: < 8W
Size: 180 x 120 x 23mm
Included in box:
7.0 inch 5.8GHz Diversity TFT LCD monitor
Outdoor screen shroud
JST power plug adapter lead
A/V cables
