5.8GHz Light 250mW VTX for GoPro 3 / 3+

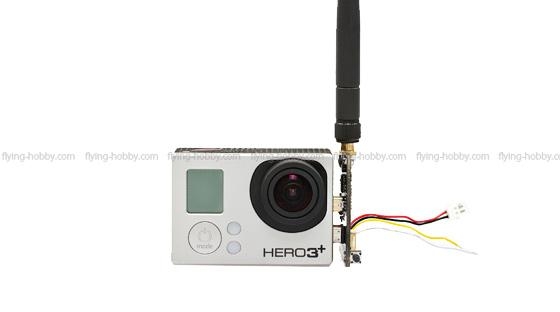

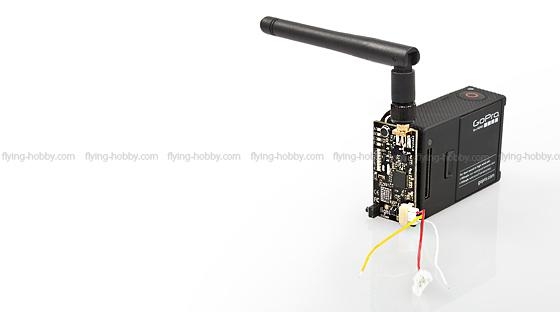

The Light 250Mw (L250) is made for the GoPro camera and DJI Phantom 2. It connects directly to the GoPro camera via the USB port (Support GoPro Hero 3 and 3+). It comes with a SMA connector for easy hookup to many different 5.8GHz antennas.

Features

• Super light: 7 grams (without antenna)
• With 32ch, and new LED show you with frequency you are working at.
• Direct connect to GH3 and GH3+
• Work on 3.7V one sell battery, you can use tiny camera to support it work for long time, i.e.: 500mAh work for 1.3hrs
• SMA connector, we suggest you to chose the short type of Clover Leaf Antennas

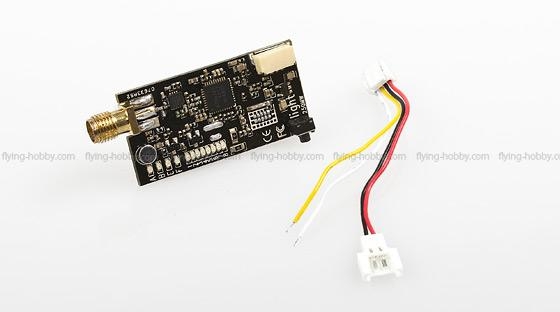

• A soft 4pin cable supplied for FPV use, which allows for other video sources if you choose.
• Power voltage regulator board allows 2-4s batteries to power the transmitter, automatically steps it down to 3.7v.

Specifications

• Frequency: 5.6-5.9GHz
• Voltage input: 3.5-5.2V
• Send power: 250mW
• Work current: 360mA/3.7V
• Work temperature: -10-+85 °C
• Video bandwidth: 8M
• Audio encoder: 6.5M
• Connector: USB video connector (to GoPro, Support H3 and H3+, DJI P2 VTX)
• Weight: 8.2g
• Size: 40.8mm * 20.6mm * 8 mm
