Looking for the ultimate power system for your next multi-rotor project? Look no further!
The Turnigy Multistar brushless outrunners are designed with one thing in mind - maximizing multi-rotor performance! They feature high-end 45SH magnets, high quality NMB bearings and high poles counts for less noise, smooth and responsive power and increased efficiency. They have custom motor mounting and all are precision balanced for smooth running, these motors are engineered specifically for multi-rotor use and are not based on airplane motors.

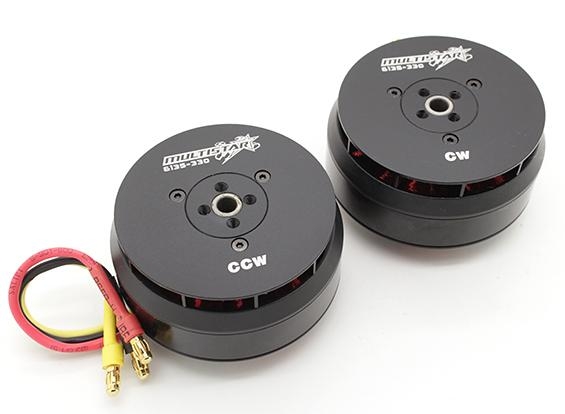

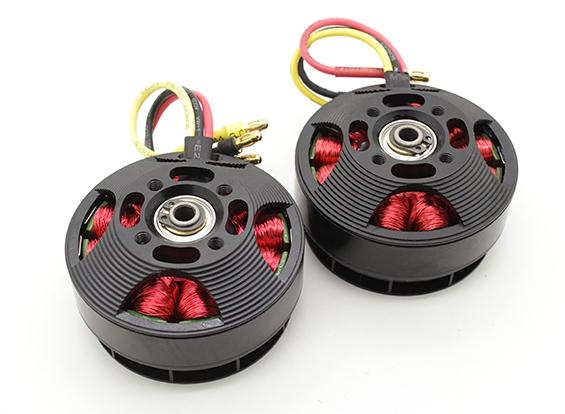

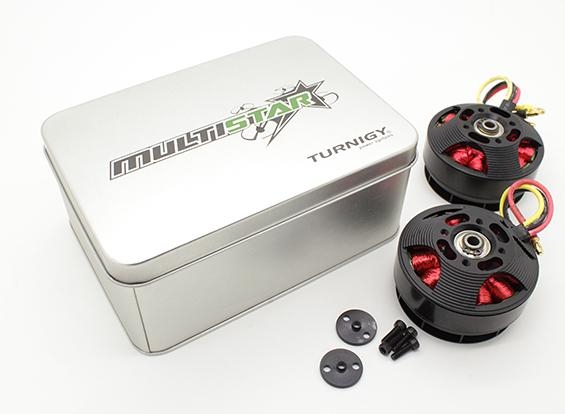

The 6135-330KV Multistar brushless outrunner is in a league of its own with its unique cooling fan integrated into the bell of the motor, it ensures maximum efficiency by protecting the windings from overheating. Each motor has a recommended motor direction marked on the fan (CW-CCW) and are timed specifically for that direction of rotation again to ensure maximum efficiency. Includes the prop fitting plate and screws ready to take your carbon prop directly and securely.
Multistar is simplifying the world of multi-rotors with their purpose built product line and by taking the guess work out of your setup.
Specs:
KV(RPM/V): 330
LiPo Cells: 6s
Max Power: 936W
Max Amps: 39A
No Load Current: 1A @ 24v
Internal Resistance: 0.052ohm
Dimensions(Dia.xL):42.2 x 25.7mm
Motor Shaft: 7.8mm
Prop Shaft: 12mm hole to hole for bolt through style props
Weight: 230g (each)
Bolt Hole Spacing: 25mm
Suggested Propeller: 18 x 5.5
Prop Test:
3500g Thrust - 30A - 18 x 5.5 @ 6S 24v
Watts Under Load: 6s (3.3v x 6 = 19.8v) 19.8v x 39A = 772.2W
