If you are looking for the ideal LCD monitor for your FPV ground station or any other form of aerial videography, this is your best choice! Designed specifically for FPV use and outdoor conditions, a foldable screen shroud is included for optimal viewing. This monitor has a very bright image which is fully adjustable, and a wide power supply voltage range (DC 6~18V).
The most important feature of this monitor for FPV users is that it does not switch to the "blue screen" when the signal gets weak. This allows you to fly much further without losing the image. When there is no video input, the monitor just shows static, it never turns blue or black.
Features:
• 7.0 inch TFT LCD Display
• Ideal for use with FPV
• No "Blue Screen" caused by weak signal input
• 800 x 480 High Resolution Display
• LED Backlight
• 16:9 Display Ratio
• 15ms Response Time
• 500:1 Contrast Ratio
• Wide 6~18V DC Input Voltage Range

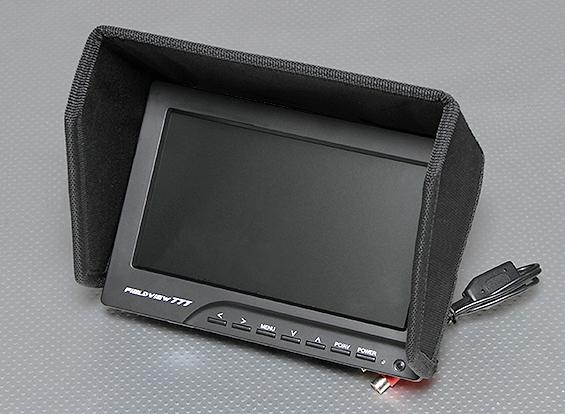

• Foldable Screen Shroud for outdoor use included
Specs:
Panel Size: 7.0 inch
Panel Type: TFT LCD
Resolution: 800x480
Backlight: LED
Horizontal Frequency Range: 30~60kHz
Field Frequency Range: 50~75Hz
Dot Pitch: 0.0642 (W) x 0.1790 (H) mm
Display Ratio: 16:9
Brightness: 400 cd/m²
Contrast Ratio: 500:1
Response Time: 15ms
Viewing Angle: 70°/70° (L/R) 50°/60° (U/D)
Input Voltage: DC 6~18V
Power Consumption: ≤ 5W
Working Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Dimensions: 182 x 127 x 32mm
Weight: 363g
Included in box:
7.0 inch TFT LCD monitor

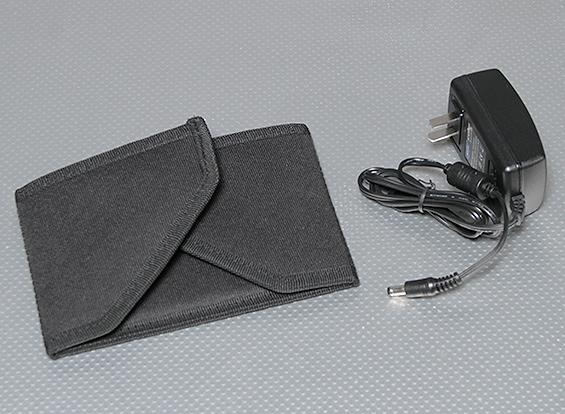

Outdoor screen shroud
AC to DC adapter (100~240V AC input, 12V DC 1.5A output)
User manual
