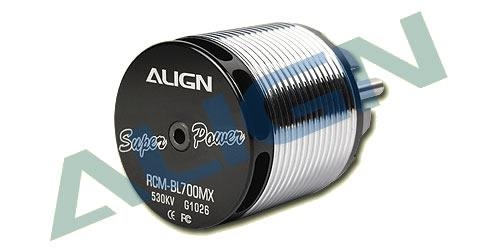

700MX Brushless Motor(530KV) RCM-BL700MX

ottimo per 7HV!!

Instructions:
1.700MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
2.The 700MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
3.Maintenance free, high torque, high efficiency, stable and quiet.
4.High-speed ball bearings, powerful magnetic outrunner rotor.
5.Suitable for T-REX 700E helicopters.


Specification:
●Input voltage:DC11.1V-50.4V
●Max continuous current:90A/150A(5sec)
●Max output power:4000W/6600W(5sec)
●KV value:530KV
●Stator Arms:12
●Magnet Poles:10
●Dimension: spindle φ6xφ52x57.5mm
●Weight: 405g (prox.)

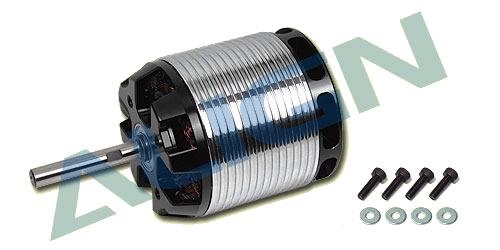

Accessories:
●Socket screw(M4X10)X4
●Washer(φ4Xφ10X1)X4
●4mm gilt terminal x 3
