12 Channel 900Mhz
Tx/
Rx video system with CCD camera. Great for FPV systems in countries with less restrictive RF power output.
Unlike other generic systems, we have produced a wiring loom and included it with the camera so that the
Tx and camera will be compatible and on the same voltage.
If you buy your camera and
Tx seperately the plug polarity and voltages may be very different.

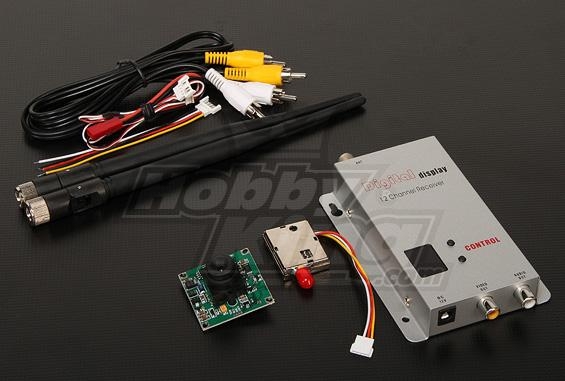

Included.
1 x SONY CCD 1/3inch Camera
1 x 900Mhz 4 channel Video Transmitter (200mW)
1 x 900Mhz 12 channel Video Receiver
Camera spec.
CCD sensor type:1/3 color SONY CCD
Pixel;
NTSC: 510(H)*492(V)
PAL: 500(H)*582(V) (included)
Scanning system: Interlaced scanning
Synchronization: System:Inter
Horizontal resolution: 420TV line
Minimum Illumination 0.01LUX/F1.2
DSP+CCD: CXD3142R+405AK
S/N Ratio: 48dB
Gamma Modification: 0.45
White balance: Auto
Auto backlight compensation: Auto
Lens: 3.6MM
Audio: No
Input voltage: 9~12.6V
Electric current 80MA
Electronic Shutter: 1/50 (60) ~ 1/100,000s
Video output: 1.0VP-P composite video
Operation Temp.: -20~50
Size: 38*38mm
Flight time: Approx 60min/100mah 3S
FPV Tx Spec.Channel: 4-Ch, AV synchronization
Power: 200mW
Input voltage: 12V
Weight: 18g
Size: 31x88x8mm
Frequency: 0.9G 0.910G,0.980G,1.010G,1.040G
