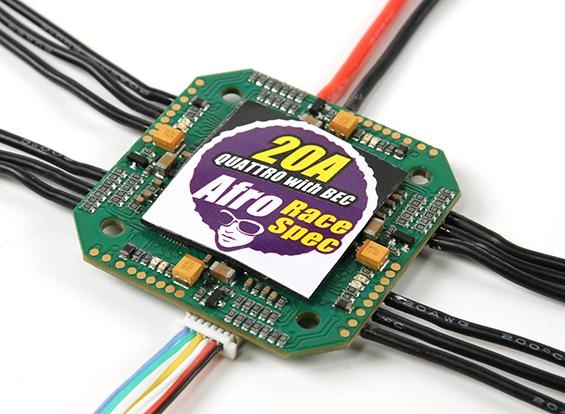

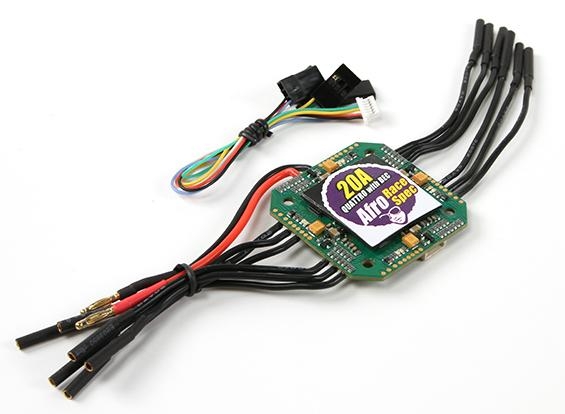

The Afro Race Spec 4 x 20A ESC is the perfect power solution for your quadcopter by incorporating 4 x 20A ESC's into a single compact unit. This allows for a super neat install and also allows you to mount the ESC in the middle of the frame instead of having to mount an ESC on each arm.
Developed from the ground up, the design team wanted to build a truly Multi-rotor specific ESCthat would offer the best performance and value on the market today. We wiped the slate clean and looked to the community for inspiration and help in designing an ESC that truly could be known as “The Multi-rotor ESC”
Enter Simon and Hamasaki AKA SimonK and timecop. This combination of hardware and firmware expertise in conjunction with the Hobbyking in house engineering team gave us the edge needed to develop an ESC like no other and hence the Afro series was born.
Boasting high efficiency, all N-channel MOSFET design, jitter-free hardware PWM input, and smooth power response the Afro ESC series are set to change the expectations of multi-rotor pilots around the globe. The Afro ESC series ship with multi-rotor specific SimonK software preloaded! No need to reflash.
For added convenience the Turnigy USB linker can be used via the PWM signal lead for any future software updates eliminating the need for complicated flashing jigs or the need to cut open the heat shrink.
This version of the Afro multi-rotor speed controller has been developed especially for the growing 250 FPV racing class. The demands of the FPV racer are very high but this speed controller ticks all the right boxes, it is very small and lightweight but still packs a mighty punch.
Features:
• Supports Oneshot, SimonK and BLHeli, USB flashing
• Race spec set up, ideal for 250 class racers
• Compact 4 in 1 style ESC
• Boasting high efficiency all N-channel MOSFET design
• Super smooth power response
Specs:
Amps: 20A
Cells: 2S-4S Lipo
Voltage: 8.4V-16.8V
BEC: 1A
BEC type: Linear
Timing: N/A
Cutoff Voltage: N/A
Input Frequency: 1K
Weight: 28.5g
Size: 43.2 x 43.2mm (30.5mm Mounting post)
Connectors: 2mm bullet type
