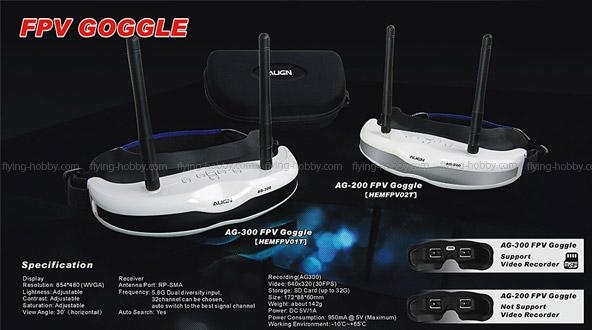

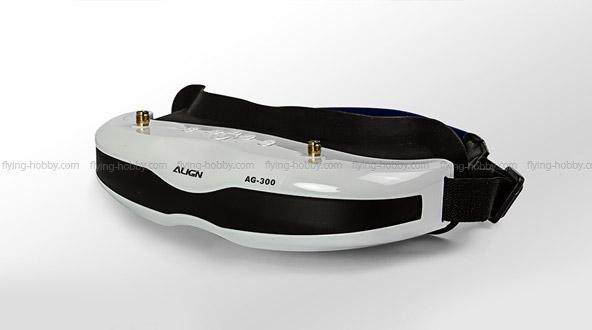

AG300 FPV Goggle

Display

• Resolution: 854x480 (WVGA)
• Lightness: Adjustable
• Contrast: Adjustable
• Saturation: Adjustable
• View Angle: 30°（horizontal）

AG300 Recording

• Video: 640x320 (30FPS)
• Storage: Micro SD Card (up to 32G)
• Power: DC 5V/1A
• Power Consumption: 950mA @ 5V (Maximum)
• Working Environment: -10°C ~ +65°C

Receiver

• Antenna Port: RP-SMA
• Frequency: 5.8G Dual diversity input
• 32channel can be chosen
• Auto switch to the best signal channel
• Auto Search: Yes

Specification

• Size: 172x88x60mm
• Weight(Kit only): Approx. 142g

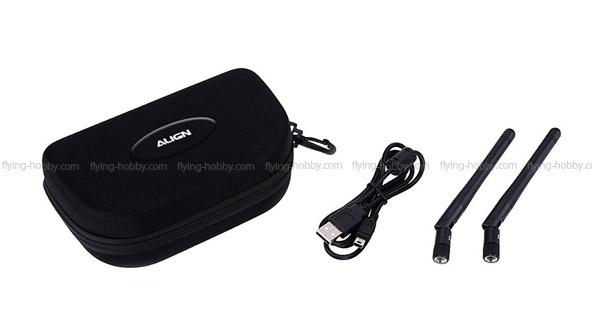

Content

• AG300 FPV Goggle x 1
• 5.8G Circular Polarized Antenna x 2
• FPV Goggle mini USB Wire x 1(900mm)
• FPV Goggle Bag x 1

AG300 FPV Goggle Manual
