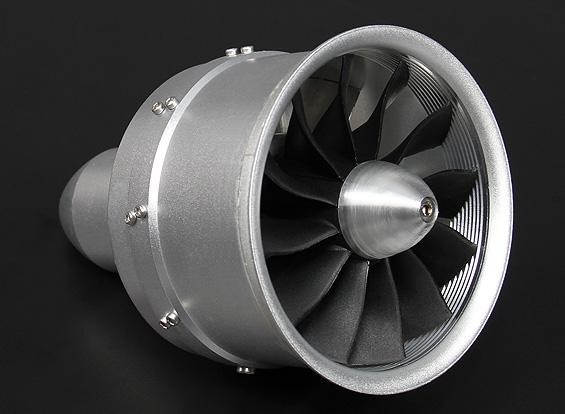

Alloy DPS Series 90mm 12-Blade EDF unit with 1000kv Motor - 4000watt (10s)

The alloy Dynamic Power Series fans are of the very highest quality. The construction of this ready to fit and fly unit offers a combination of huge power with reliability and efficiency.

Featuring a 12-blade rotor and 9 stator alloy housing, this fan will provide amazing sound and performance that can't be beat! The unit is factory dynamically balanced resulting in a turbine-like smoothness. This superb EDF is totally Pre-assembled complete with motor, simply fit to your model, connect to the ESC and tear up the sky!

Specs:
EDF Rotor Diameter: 86mm
Outer Diameter: 94mm
Construction: Alloy
Weight: 657g (complete unit with 4mm connectors)
Motor Type: 4074 1000kv
Max Power: 4000w
Max Voltage: 37v (10S)
Max Amps: 99A
Max Thrust: 4.65kg

Power / Thrust Data:
Power: 8S / 29.6V
Max Watt: 2800W
Cont.Watt: 2550W
Amps: 82A
Thrust: 3.6kg

Power: 9S / 33.3V
Max Watt: 3300W
Cont.Watt: 3100W
Amps: 89A
Thrust: 4.1kg

Power: 10S / 37V
Max Watt: 4000W
Cont.Watt: 3850W
Amps: 99A
Thrust: 4.65kg
