Alloy DPS Series 90mm 12-Blade EDF Unit with Heatsink

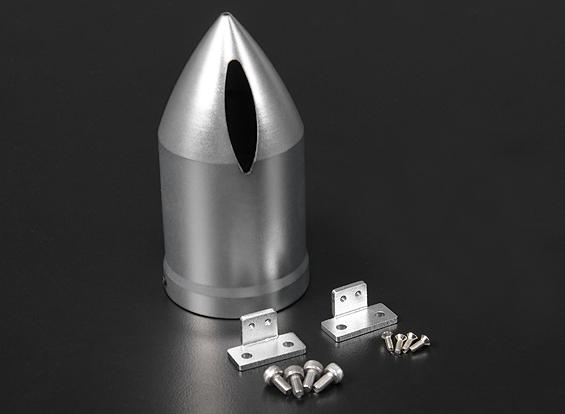

The Dynamic Power Series fan units are of the very highest quality. This 12 blade unit offers a distortion free alloy housing, correctly profiled stators and aerodynamic motor shroud/heat sink.

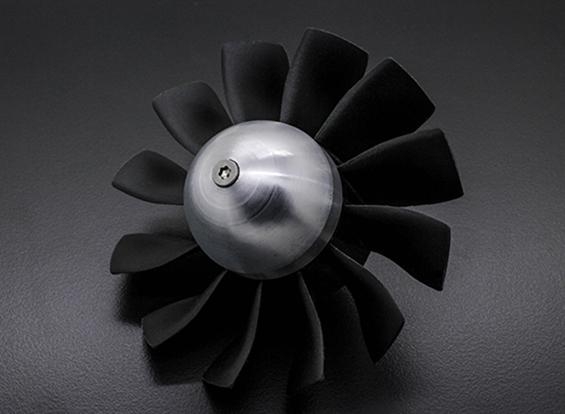

The impeller in this unit is one piece, dynamically balanced and features a computer aided design that is virtually vibration free and extremely efficient.

The end result is an efficient, high thrust fan unit and that awesome turbine sound!

Specs:
EDF Rotor Diameter: 86mm
EDF Outer Diameter: 94mm
EDF Shroud Length: 70mm
EDF Front Shroud Diameter: 99mm
EDF Wall Thickness: 2.50mm
Motor Shroud Diameter: 40mm
Motor Shroud Outer Diameter: 43mm
Motor Shroud Length: 87mm
Motor Shroud Motor Mount Length: 51mm
Motor Shroud Wall Thickness: 1.50mm
Impeller collet: 5mm
Construction: Alloy
Weight: 243g
