AP800 Digital Pitch Gauge

AP800 Digital Pitch Gauge.

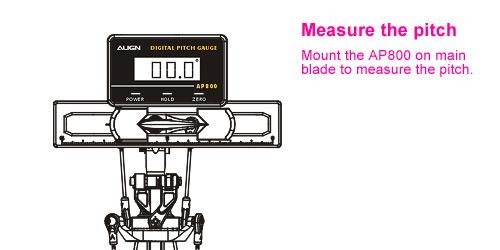

Developed by the RD team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Fatures:
- Auto-detecting Horizontal level.
- Uses backlighting LCD monitor.
- Zero and Lock function.
- Detectable pitch range: -90 - 90 degrees.
- Automatic screen rotation.
- Suitable for 200-800 mm main blades.
- Build-in energy saving function. Power shuts down after 3 mins without any movement.

Specification:
- Body Dimension: 108x53.9x16 mm
- Suitable blade width: 20 mm - 74 mm
- Detectable pitch range: +-90 degrees
- Resolution: 0.1 degrees
- Battery: 2x CR 2032 Lithium
- Weight: 38 g (including battery)
