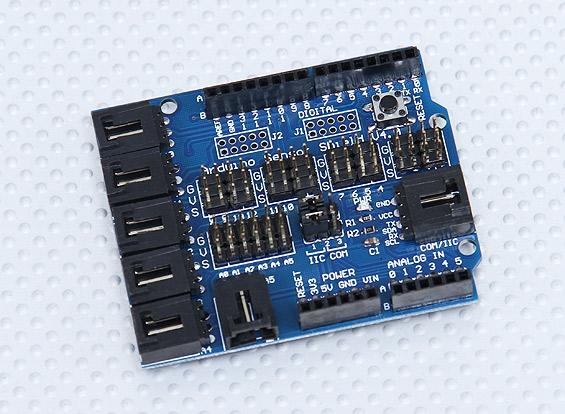

Arduino Sensor Shield V4 digital analog module

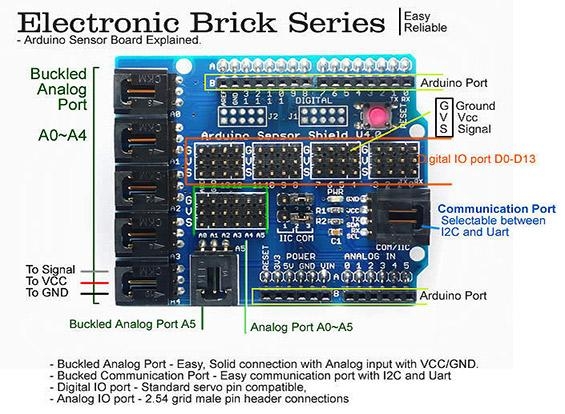

The Arduino Sensor Shield V4.0 allows plug and play connection to various modules like sensors, servos, relays, buttons, potentiometers and more. Each functional module has a buckled port with VCC, GND and Output, which has a corresponding port on the Sensor Shield, connected with a 2.54mm dual-female cable.

Features :
- Plug & play.
- Operating Voltage: 5VDC
- Input Voltage (recommended): 7-12VDC
- Input Voltage (limits): 6-20VDC
- Buckled Analog Port : Handy, solid connection to 6 Analog inputs with VCC/GND
- Digital IO port : 13 ports prepared to digital modules or servos
- Analog IO Port : 2.54 grid male pin header connections
- Buckled Communication Port : Selectable between I2C and UART
- Weight 28g


Includes:
1 x Sensor Shield digital analog module V4 FOR Arduino

For support and software visit
http://www.arduino.cc/
