Das Midi taumelscheibenservo kreiert von 3D Guru Bert Kammerer mit sagenhaften 10,6kg und 0,03 sec. Stellzeit bei 8,4 Volt. Das Heckservo der 3D Smacker!

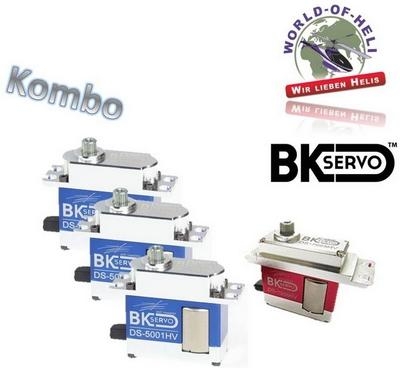

BK Mini Cyclic servo , coreless motor , speed 0.03s, torque 10.6kg ( BLUE )
Includes:
DS-5001HV BK Cyclic Servo x 1pc
Use for:
Goblin 500
All 500 size helicopters
Specifications:
Operation Voltage: 6V - 8.4V
Weight: 50g (1.7 Oz)
Torque:
8.4 kg/cm (116.7 oz/in) at 6V
9.6 kg/cm (133.3 oz/in) at 7.4V
10.6 kg/cm (147.2 oz/in) at 8.4V
Speed:
0.035 sec/60 at 6V
0.032 sec/60 at 7.4V
0.03 sec/60 at 8.4V
Dimensions: 15x36x35.5 mm
Frequency: 1520us/333 hz
Gear Type: 7075 Alu
Motor Type: Coreless
-----
Das Heckservo kreiert von 3D Guru Bert Kammerer mit sagenhaften 10,6kg und 0,03 sec. Stellzeit bei 8,4 Vot. Das Heckservo der 3D Smacker!
BK Tail servo , coreless motor , speed 0.03s with STD top case ( RED )
" This servo is a Mini size servo with a Standard size top case , it will only fit where standard size servos fit , not mini size"
Includes:
- DS-7005HV Tail Servo x 1pc
Use for:
Goblin 500/630/700/770
All 500/600/700/800 Size Helicopters
Specifications:
- Operation Voltage: 6V - 8.4V
- Weight: 50g (1.7 Oz)
- Torque:
8.4 kg/cm (116.7 oz/in) at 6V
9.6 kg/cm (133.3 oz/in) at 7.4V
10.6 kg/cm (147.2 oz/in) at 8.4V
- Speed:
0.035 sec/60 at 6V
0.032 sec/60 at 7.4V
0.03 sec/60 at 8.4V
Dimensions: 15x36x35.5 mm
Frequency: 760us/333 hz
Gear Type: Metal
Motor Type: Coreless
