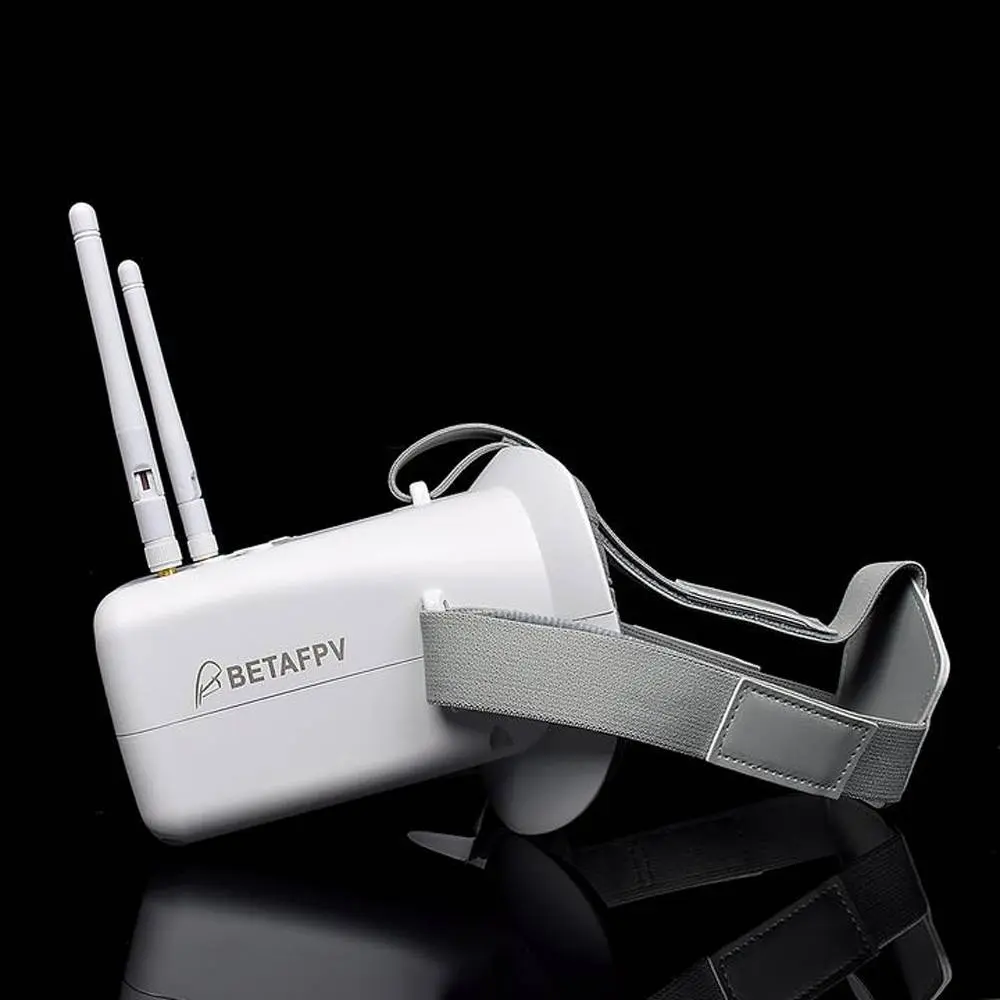

BETAFPV VR01 FPV Goggles

About this product

The BETAFPV VR01 FPV Goggles come with a 4.3-inch 800x480px HD high brightness LCD, which allows you to experience a bright world without warped and blurred images. Features an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband.

Suitable for all age ranges.

Features

• BETAFPV VR01 FPV Goggles is with 4.3 inches 800*480px HD high brightness LCD, which is specially tuned for FPV racing or Model airplane.
• Adopt ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.
• Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand.
• Come with an advanced auto-searching function and show you the working frequency on screen.
• 92% transparent lens adopted, no distort, no blur on the adage of the screen.
• Lightweight 375g with 2hr 2000mAh battery, RTF for any scale, racing, Model airplane game.

Specification

Body

• Dimension: 155x144x113mm
• Weight: 375g with 2hr 2000mAh battery
• Belt: three-Ways adjustable belt

Screen

• screen size: 4.3 inch
• Screen resolution: 800*480 (No blur after enlarge by the lens)
• Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV
• View Angle: 12 O'CLOCK

Lens

• 2.8x boost of the video to acquire intense feel-in-there video
• 92% transparent rate no distort of light

Jack

• Input CVBS
• Headphone sound output
• TF Card(C10) Max32G
• USB DC5V IN, the device operating current of 550mA@5V, built-in battery maximum charge current of 750mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment

Battery

• Built-in 3.7V/2000mAh high-capacity polymer battery, when the battery is charging, the device the red LED will light when charging is completed, here are bright green LED
• Each full charge revive is around 2 hours working time

Band and Channel Selection

Operation Instructions

KEY

• K1>SearCH/AV

The default mode, Short press for automatically search signals to certain signal strength and stops on that channel; Long press switch RF MOD and Long press for AV MOD; In Play mode, pressed jump volume to adjust OSD.

• K2>MENU/Power

The default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is used as the Return.

• K3>REC/Play/OK

The default mode, Short press for recording /STOP; Long press for Play mode; MENU pressed, this button is used as the confirmed.<

• K4>Band+/VOL+

The default mode, Short press for Band+ option A, B, D, E, F, R cycle selection; Long press for Volume control -; MENU pressed, this button is used as the UP.

• K5>CH+/VOL-

The default mode, Short press for CH 1~8 cycles; Long press for Volume control +, MENU pressed, this button is used as the DOWN.

Playback

• Call MENU and select Playback (Short Press K1 button to call menu, and use K3 button to select Playback mode; Or long pressed K3 )
• Review/Replay in Playback mode (Playing Short K1 jump volume adjust OSD)
• Buttons have a different function in playback mode
• Record file: AVI, 800*480px progressive
• Support up to 32G TF card (C10 recommend)
• K2: Playback menu (volume control/file delete/protect)
• K4: UP/ fast backward<<
• K5: DOWM/ fast backward>>
• K3: Select/Play/ Pause
• K1: Quit Playback mode

Note: NOTE: If the device is not used for a long time, please charge once every four months, in order to protect the battery.
