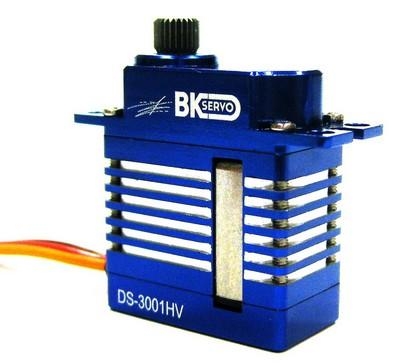

BK DS-3001HV Micro Taumelscheiben Servo

BK DS-3001HV Micro Taumelscheiben Servo

Micro HV Taumelscheibenservo von Bert Kammerer - perfekt für Goblin 380, TREX 450, Gaui X3 uvm

Daten:

• 6-8 Volt
• Gewicht: 20g
• Größe: 12x23x27mm
• Ansteuerfrequenz 1520us/333hz
• Metallgetriebe
• Stellzeit: 0,09s/60 @5V| 0,07s/60 @6V| 0.06s/60 @7,4V
• Kraft: 4.16 kg/cm @6V | 5 kg/cm @7.4V | 5.5 kg/cm @8.4V

This high end micro servo offers incredible torque combined with high speed, it is also 100% high voltage compatible and very precise. Ideal for 450 class machines, such as Goblin 380, T-Rex 450, GAUI X3, KDS Chase and many others.

Operation Voltage: 6 - 8V
Weight: 20g (0.71oz)
Dimensions: 12x23x27 mm
Frequency: 1520us/333hz
Gear Type: Metal
Motor Type: Coreless
Speed: 0.09 sec/60 @5V | 0.07 sec/60 @6V | 0.06 sec/60 @7.4V
Torque: 3.68 kg/cm (51.1 oz/in) @5V | 4.7 kg/cm (65.3 oz/in) @6V | 5.8 kg/cm (80.5 oz/in) @7.4V

Features
High Voltage
High Speed
Excellent Centering
Unique CNC Design
Compatible with Futaba type horns/arms
Light Weight
