BK MICRO HELI SERVO SET 3 x DS-3002HV + 1 x DS-3005HV
great for MiniComet, SAB Fireball, Oxy Heli - 3 pcs. BK DS-3002HV Cyclic Servo & 1 pcs. BK DS-3005HV Tailservo

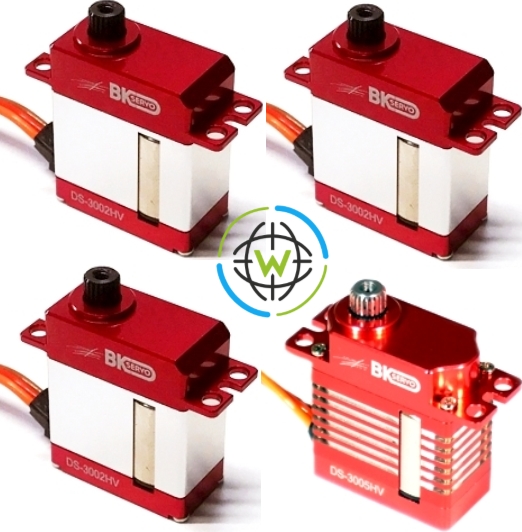

BK SERVO MICRO HELI SERVO SET
Included:
- 3 x BK DS-3002HV Cyclic / Swashplate Servo
- 1 x BK DS-3005HV Tailservo
recommend for:
- SAB MiniComet
- SAB Fireball
- Oxy Heli
High End Servo Combo for Small Helicopters with Combo Price (You save 10% to single purchase))!
BK DS-3002HV Micro Servo
Technische Daten:
- 6-8 Volt
- Gewicht: 2
- Größe:
- Ansteuerfrequenz 1520us/333hz
- Metallgetriebe
- Stellzeit:
- Kraft:
This high end micro servo was specifically designed for models using blades under 300mm. It offers incredible speed and performance, it is also 100% high voltage compatible and very precise. Ideal for sub micro class helicopters, such as the Oxy line, Goblin Fireball and Mini Comet!
Operation Voltage: 6 - 8V
Weight:
Dimensions:
Frequency: 1520us/333hz
Gear Type: Metal
Motor Type: Coreless
Speed:
Torque:
BK DS-3005HV Heckservo
Technische Daten:
- 6-8,4 Volt
- Gewicht: 20g
- Größe: 12x23x27mm
- Ansteuerfrequenz 760us/333hz
- Metallgetriebe
- Stellzeit: 0,06s/60 @5V| 0,05s/60 @6V| 0.04s/60 @7.4V
- Kraft: 2,4kg/cm @4,8V | 3,1 kg/cm @6V | 3,5 kg/cm @7,4V
This high end micro size tail servo offers lightening fast speeds and it is 100% high voltage compatible. Ideal for micro class machines.
- Operation Voltage: 6 - 8V
- Weight: 20g (0.71oz)
- Dimensions: 12x23x27 mm
- Frequency: 760us/333hz
- Gear Type: Metal
- Motor Type: Coreless
- Speed: 0.06 sec/60 @5V | 0.05 sec/60 @6V | 0.04 sec/60 @7.4V
- Torque: 2.4 kg/cm (33.3 oz/in) @4.8V | 3.1 kg/cm (43.0 oz/in) @6V | 3.5 kg/cm (48.6 oz/in) @7.4V
Features
High Voltage
High Speed
Excellent Centering
Unique CNC Design
Compatible with Futaba type horns/arms
Light Weight
Non disp.
