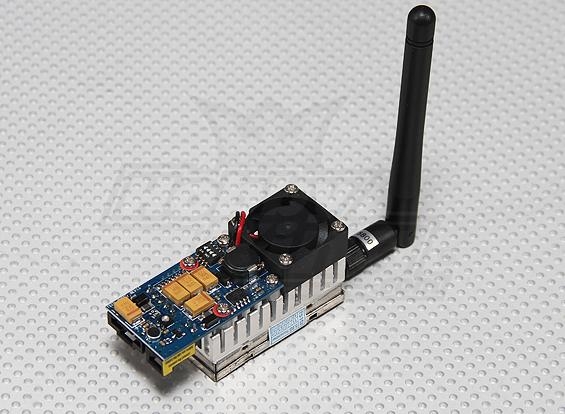

This 5.8G 500mW 8 Channel AV Transmitter features a high power output for longer range with your FPV models. With its audio/video inputs and video output, this is a great unit for use with your FPV/OSD system. It also offers a compact size with built in heatsink and cooling fan to ensure your components stay cool.
Features:
5.8G Technology 5645MHz~5945MHz
Built-in microphone audio pick up device
8 Channel selectable
Specs:
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 26~28 dBm
Operating Voltage: DC 7~15V
Supply Current: 500mA
Operating Temperature: -10~+85 °C
Audio Carrier Frequency: 6.5MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Antenna Connector: RP-SMA
Dimensions: 69 x 26 x 28mm
Weight: 66g (w/antenna)
5800MHz 500mW TS352 Wireless Video Audio AV Sender Channels & Frequencies
5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ
Compabible with the True 640x480 2.4ghz and 5.8ghz FPV goggles and the RC305 and RC805 5.8Ghz receivers.
Included:
1 x 5.8G 500mW transmitter
1 x Stock dipole whip antenna
** Many fake, poor quality & untested FPV products are currently entering the market. Don't get caught out with poor quality substitutes, Boscam FPV equipment is tried and true and has been tested and developed by FPV pilots for FPV pilots
