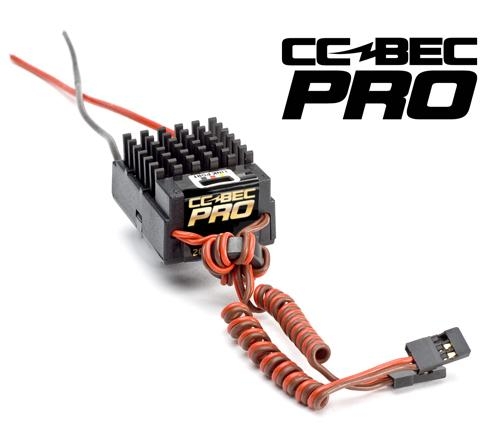

CC BEC PRO 20A 50,4V Switching Regulator

Our Battery Eliminator Circuits are small devices that eliminate the need for a receiver and servo battery pack.
They draw higher voltage from the motor batteries and drop it to a voltage level that is suitable for your receiver and servos.
This is required in applications which draw high power for multiple servos or use more than 3S motor packs,
as most ESCs with linear BECs are not designed for these applications.


NOTE: CC BEC Pro should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.


Technical Data:
Length: 1.69" (43mm)
Width: 1.3" (33mm)
Height: 0.94" (24mm)
Weight: 1 oz* (29g*)
Max Amps: 20 amps peak**
Max Volts: Cars: 6s (25v) / Airplanes: 10s (40v) / Helicopters (with brake disabled): 12s (50v)
Adjustable Output Voltage: 4.8V to 12.5V
