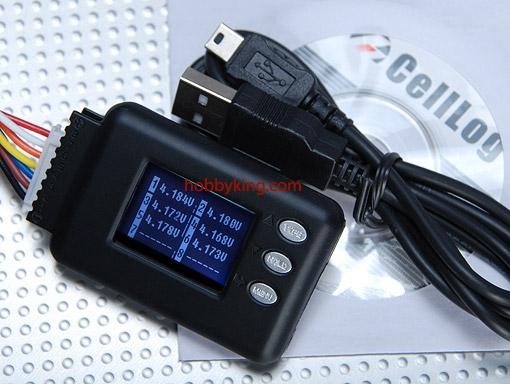

Cell-Log Cell Voltage Monitor 2-8S Lipo

Accurate cell voltage monitor for up to 8 cell battery packs. Voltage alarm configurable with over voltage and low voltage settings.
The CellLog 8S is pre-calibrated at the factory to ensure accurate cell voltage readings.
USB support for downloading cell data and software upgrade on the 16Mb flash memory.
Supports logview: www.logview.info

Lithium (LiPo/LiIo/LiFe) battery cell count: 2 8 series
Pack voltage range: 4.0 43.0VDC (USB can provide lower voltage 1.0V)
Alarm pack voltage range: 0.1 4.3VDC
Cell voltage range: 1.3 4.9VDC
Alarm cell voltage range: 1.3 4.9VDC
Voltage display resolution: 1mV
Current loading of test: 8mA
Maximum voltage for alarm port: 50VDC
Current drain for alarm port: <500mA
Log Files storage: 16Mbit (36 hours)
Sample logging time interval: 2 seconds
PC Connect: USB port
Weight: 18g
Dimensions (L X W X D): 62 X 39 X 12mm (2.44 X 1.53 X 0.47in
