CNY Sale Align MR25P Racing Quad Combo - green

Combo includes:

• Align MR25P Racing Quad Combo - green (RM42503XEW) x1
• Align 3D VR Goggles (HEMVR001) x1
• batteria align 1300 3s x1


With all the top and modern Elec technology, the MR25P is equipped with 7 in one: Flight Controller system, utilizes a 32 bits high speed processor that results in a highly stable and reliable performance. Providing the most effective way of system and camera setting adjustment via APP iOS & Android system, as well as with Bluetooth 4.0 compatibility featuring low power long distance high speed transmission. The ideal Tilt angle camera provide instant tilting compensation in high speed flight.

The mainly structure is uniquely designed with adjustable motor tilt angle offering flexible compensation, and customizable 256 LED colors through APP. Superb lightweight and anti-collision frame design is also capable of 3D flips by moving aileron/elevator stick to the end. This is the one you definitely need, come and take a look!

A flight controller born from the intrgration of cutting edge electronics and innovative information technology. Utilizes a 32 bits high speed processor, combining ESC, power distribution systen, OSD, Bluetooth connectivity, and gimbal control function. Featuring high precision 6-axis gyroscopic sensor and barometric sensor. Drived from Align's auto pilot core technology, the highly intelligent attitude calculation subroutine results in a highly stable and reliable performance.	Setup and flight parameter tuning can be done through apps running on iOS/Android smart phone or tablets. In addition, the app can be used to control DV camera and video recordings. Bluetooth 4.0 compatibility featuring low power long distance high speed transmission.
High intensity LEDs at bottom, motor mounts, and back plate. With RGB colors customizable through smartphone app.	Single axis camera gimbal to provide camera tilting angle compensation during high speed flights, keeping camera image level with horizon. Tilting angle is also manually adjustable. High Definition DV Video Recorder(1080P 30fps). Supports 32G SD card.
Live Flight data display including flight time, mode, attitude, voltage, capacity, current, camera mode, recording mode, and low voltage warning.	FPV through MR25P onboard DVR camera and 5.8GHz Video Transmitter, broadcast live with zero latency to LCD screen or FPV goggles.
Aerodynamically efficient outer shell made with light weight impact resistant ABS plastic alloy material. Provides extra protection while increasing flight visibility. Multiple color scheme available for customization.	Brand new Align BL1806-2300kv multirotor race motor, based on Align's legendary motor core technology, featuring high torque, high speed, high efficiency, low power consumption, and low temperature. Normal Flight time approximately 9 minutes with 3s-1300mah battery.
Adjustable Motor Tilting Angle with maximum +/- 30 degrees angle offering flexibility to compensate for camera angle, or improve speed and stability, giving you the optimal edge at starting line.	Manages signal and power distribution. With single battery, power is distributed to flight control, motors, DVR, 5.8Ghz video downlink, gimbal, multifunction panel. Has a master power switch to make powering up simple, and a battery meter to display current battery capacity. The multifunction panel has unique brake and turn signals for the added realism during FPV racing.
Capable of 3D flips in manual mode by moving aileron/elevator stick to the end.

MRS Flight Control

• Input Voltage: 10V~16.8V
• Operating Frequency: 800HZ
• Operating Temperature: -20°C~65°C(-4°F~149°F)
• Maximum Angular Speed: Aileron/Elevator 400°/sec, Rudder 45°/sec
• Maximum Tilting Angle: 80 degrees
• Supports Multicopter Configurations: MR25, MR25P

Multicopter Brushless ESC

• Input Voltage: 11.1V~14.8V(3S~4S Li-Po)
• Max Continuous Current: 15A
• Operating Temperature: -5°C~45°C(23°F~113°F)

RCM-BL1806 Brushless Motor 2300KV(RPM/V)

• Input Voltage: 11.1V
• Max Continuous Current(3 min): 12A
• Max Continuous Power(3 min): 135W
• Stator Arms: 12
• Magnet Poles: 14
• Dimesion/Weight: φ5xφ23x25.6mm/18.5g

5.8GHz Video Transmitter

• Operating Frequency: 5.8GHz
• Operating Channels: 32 CH
• Input Voltage: 7~19V DC
• Operating Current: 300mA 12V
• Antenna Interface: RP SMA
• Transmitting Power: 350mW
• Dimesion: 31x23x11mm
• Weight: 14g(Exclude Antenna)/21.48g(Include Antenna)

Video Camera

• Recording: 1080P 30FPS/720P 60FPS
• Encoding Format: avi
• Photo Resolution: 5M/3M pixels
• Shutter speed: 2~1/8000sec
• Input Voltage: 5V
• Perspective: 90°
• Memory Cards: Micro SD(Maximum Supported 32GB)
• Interface: Micro USB、AV OUT/DV IN、MRS Controller
• Video Output Format: PAL、NTSC

Standard Equipment

• MRS Flight Control System x 1
• Brushless Motor BL1806(2300KV) x 4
• 5.8GHz Video Transmitter x 1
• MR25 DV Video Recorder x 1
• DV Camera Gimbal x 1

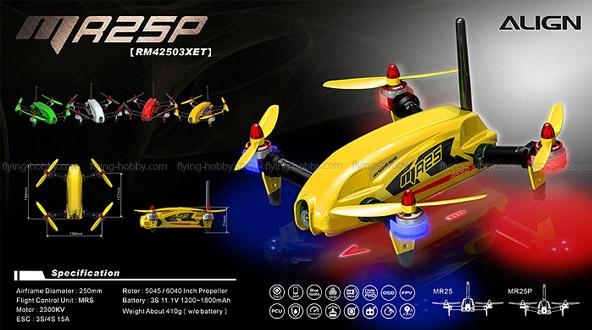

Specification

• AirFrame Diameter: 250mm
• AirFrame Height(Excluding Antenna): 78mm
• Propeller Diameter: 5 inches(127mm) / 6 inches(152mm)
• AUW(Excludes Battery): Approx.410g

Radio Transmitter and Electronic Equipment Required

• R/C Transmitter(6-channel or more,aircraft / multicopter system)
• Receiver(6 channel or more)
• Satellites Receiver
• Balance Charger RCC-3SX
• 1300~1800mAh Li-polymer Battery 3S
• 5.8G to 2.4G Converter
• Smartphone
• FPV Goggle
• FPV Monitor

Optional Equipment

• MR25P Racing Quad x 1
• 5045 Propeller x 4
• 6040 Propeller x 4
• Circular Ploarized Antenna TX x 1
• MR25 Sticker x 1
• S.BUS Connector x 1
• Receiver Signal Wire x 2
• Satellite Adapter x 1
• Hook and Loop Tape x 3
• Double Sided Tape x 1
• Hook and Loop Tape x 1
• Dual Lock Fastener x 2
• Hex Head Wrench x 2
