Compass Atom 500 Flybarless 3D CF ARF Kit w/ BL Motor + 60A ESC + CF Blad

Alla ricerca di qualcosa di meglio del T-Rex 550/600 3G ESP? Ecco la risposta!


The Atom 500 is a famous machine that can provide for all pilot levels. Beginners will like the 8 tooth Rookie while the 9 tooth will dominate in 3D and for the craziest pilots the monster 10 tooth is available.

The design of Atom 500 is evolute from the high-end engine helicopter, this gives the Atom 500 a robust, tough and lightweight CF mainframe for extreme 3D flying. The main rotor are made by hardened high quality alloy embeds with plastic parts for shock-absorption, this greatly minimize the spare parts you need to replace after a crash. The brushless main motor is very powerful, high torque and extremely cool during flights.

Chiamate per le nostre offerte combo!!!

servocomandi consigliati per il piatto ciclico

WWW.TURNIGYITALIA.COM is the official distributor of Compass Model.

• Newly Designed Flybarless Rotor Head
• Best 3D performance
• Precision ECCPM 120° metal swash plate
• Aluminum rotor head
• Aluminum tail rotor

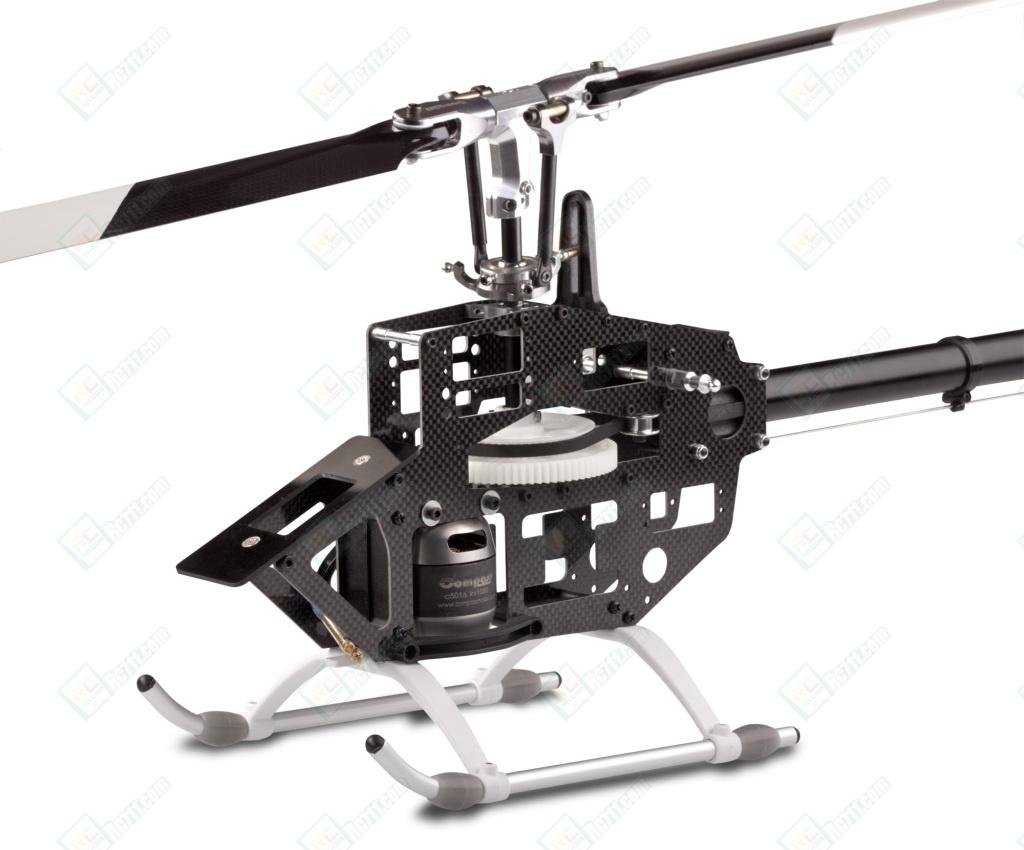

• Extra strong CF frame design
• Large gear mod 1
• Simple maintenance with easy access
• Low parts count
• 80% Preassembled kit
• Wear resistant parts
• Extra large boom avoid any static loads
• Extra large BL Hyper-Torque motor
• Estimate horse power more than 2HP
• Designed for 6S battery
• ESC 60A with 3A BEC

• Length: 835mm
• Height: 270mm
• Rotor diameter: 962mm
• Motor pinion: 9T box provided
• Gear ratio 8T: 9.75:1:4.286 (optional)
• Gear ratio 9T: 8.67:1:4.286
• Gear ratio 10T: 7.8:1:4.286 (optional)
• Take-off weight: 1.75kg
• Motor size: 500 BL HT
• KV: 1080
• Battery type: Lipo 6S
• Rotor blades: 430mm
• Tail blades: 70mm
• Paddles: 11gr/7gr for extra hard 3D

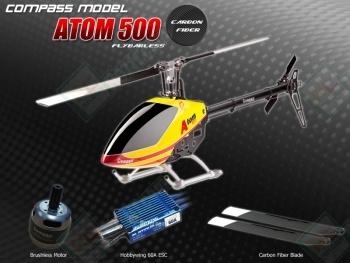

Atom 500

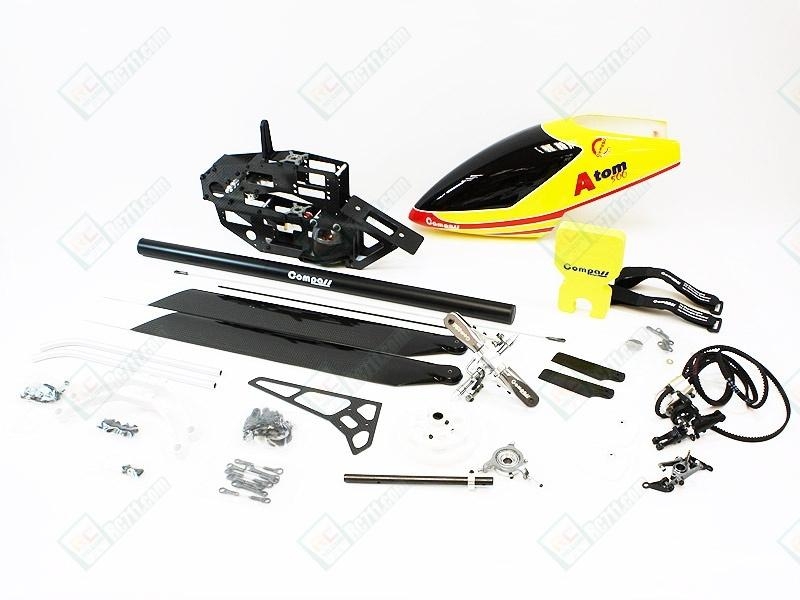

• Full Carbon Fibre Frame Set
• Carbon Fibre Main Blades
• Metal Flybarless Main Rotor Head
• 60A ESC with 3A BEC (HobbyWing)
• 1080KV Super Brushless Motor with 9T Pinion
