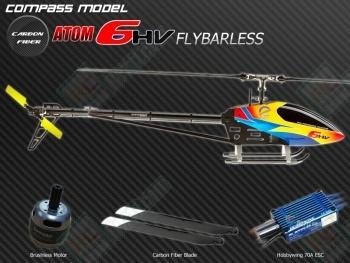

CompassModel Atom 6HV FlybarLess 3D Carbon Fibre ARF Kit with 540KV Brushless HT Motor + 70A ESC + 615mm CF Blades Chiamate per le nostre offerte combo!!!
Alla ricerca di qualcosa di meglio del T-Rex 550/600 3G ESP? Ecco la risposta!
2010-11: Frame improved for better 3D performance.
servocomandi consigliati per il piatto ciclico
HK15298 High Voltage Coreless Digital MG/BB Servo 66g / 15kg / 0.11s !!!
Atom 6HV can be powered by a single 12S Lipo Battery as well as by 2 x 6S packs. Battery sizes
from 2600mAh up to 3300mAh can be used with awesome power and long flight times!
This helicopter is the first one to allow 500 size helicopter owners to re-use their existing battery
packs in a bigger heli. A lot of pilots would like to fly a bigger helicopter without investing in new
Chargers and Balancers. So here is the right Helicopter for the right budget with the
Innovative Technology that you have come to expect from Compass Models.
WWW.TURNIGYITALIA.COM is the official distributor of Compass Model..
GUARDA IL VIDEO!
http://www.youtube.com/watch?v=UEmNpGJgmTw&feature=player_detailpage
- Newly Designed Flybarless Rotor Head
- Best 3D performance
- Precision ECCPM 120° metal swash plate
- Metal rotor head
- Metal tail gear case
- Extra strong Carbon frame design
- Main gear 104T mod 1
- Simple maintenance with easy access
- Low parts count
- 80% Preassembled kit
- Wear resistant parts
- Compass High-Torque BL motor
- Dual Pin Zero-Slop Tail Pitch Mechanism
- Estimate horse power more than 2HP
- Designed for 12S battery
- Length: 1270mm
- Rotor diameter: 962mm
- Motor pinion: 10T
- Gear ratio 10T: 10.4:1:4.8
- Take-off weight: 3500g (3300mAh 25C 12S)
- Motor size: 600 BL HT
- KV: 540
- Best Efficiency 93%
- Battery type: Lipo: 2 x 6S or 12S
- Battery Size 2600mAh to 3300mAh 25C
- Rotor blades: 610 to 615mm
- Flying Time: 6min 3D
Atom 6HV
- Pre-Assembled Carbon Frame Set
- Pre-Assembled Reinforced Main Gear
- Pre-Assembled Performance Flybarless Rotor Head
- 615mm Carbon Blades
- Pre-Assembled Precision Tail Rotor
- Metal Tail Gear Case
- High Quality Painted FG Canopy
- Brushless High Torque Motor
- 70A High-Voltage ESC (HobbyWing)
- BEC NOT included
Atom 6HV Build Videos (on Helifreak)
Compass Model YouTube Channel
Other Atom 6HV Videos: #1
Atom 6HV Manual
| Newly Designed 6HV Flybarless Performance Rotorhead
made with High Quality Metal Components with
an 8mm Spindle to withstand
high impact 3D flight. |
| Pre-Assembled Precision Tail Rotor with
Dual Pin Zero-Slop Tail Pitch Mechanism |
| Pre-Assembled Carbon Frame Set
with Wear Resistant Parts |
| High Quality Painted FG Canopy |
