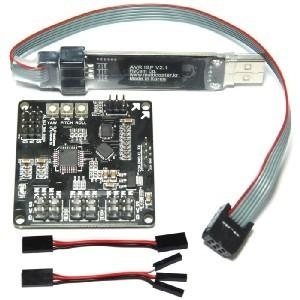

Completed SMD PCB with MEMS Gyros + AVR ISP Programmer v2.1 + Jumper cable set

Completed SMD PCB with MEMS Gyros + AVR ISP Programmer v2.1 + Jumper cable set



We have released new version Blackboard.
The FlyCam Blackboard is upgraded from kkMultiCopter.
This board is the same way as the Blueboard.
This board can be connected to the FlyCam Naviboard.

Gyros: MEMS (2 axis + 1 axis)
Motor or Servo Output: 12 channels (Support for Butterfly, Octo, X8, Y6T, TwinQuad, TwinHexa, Dodeca, ...)
MCU: Atmega168

Hole distance: 45mm, 63.6mm
This Controller and the Blueboard are the same size.

FlyCam AVR ISP Programmer v2.1 (Black)

FlyCam AVR ISP Programmer v2.1 is a fast and reliable USB AVR programmer, and works directly with AVR Studio.
It is recognized as a STK500 programmer and programs all AVRs.
OS: Windows 7, Windows Vista, Windows XP
Platform: STK500
Port: Auto (COM1 ~ COM9)

Driver: PL2303_Prolific_DriverInstaller_v130.zip

Download - AVR Studio 4.18



Install the AVR Studio. (AvrStudio4Setup-4.18.exe)

Run the AVR Studio.










Select the firmware file. (FlyCam_???Copter.hex)


Done.
