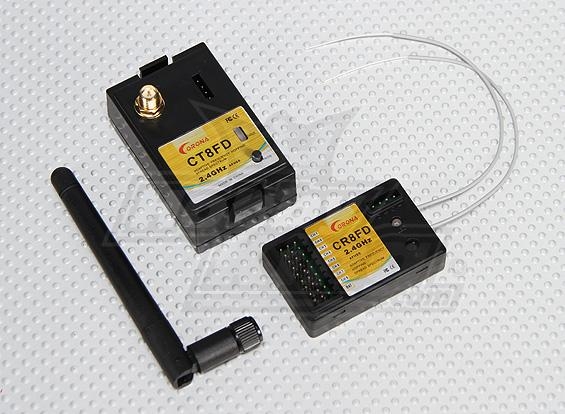

The 2.4Ghz CT8F system is the latest transmitter module replacement system on offer from Corona. Featuring Adaptive Frequency Hoping Spread Spectrum technology (AFHSS) providing high interference rejection even in an interference rich environment. The CT8F system also features the ability to send and receive data for advanced Telemetry functionality*
Specs.
Transmitter Module
Dimension: Length 59mm x Width 37mm x Height 22mm
Operation Voltage Range: 6 – 13V
Operation Current: <=50mA @ 10v
RF Output Power: <=100mW
Channels: 8
Receiver
Dimension: Length 50mm x Width 32mm x Height 12mm
Operation Voltage Range: 4.8 – 6V
Operation Current: <=50mA @ 5v
Sensitivity: -100dBm
Resolution: 10bit
Channels: 8
Features.
AFHSS technology (Adaptive Frequency Hopping Spread Spectrum)
Quick and precise response
Low power consumption
Fail safe is available on the receiver
Easy range check with alarm beep
Dual antennas diversity
Packet error rate of receiver delivery to transmitter
Receiver event alarm*
Extended Features (Telemetry)*
Voltage / Amp draw / temperature status
Motor RPM display
GPS data including longitude, latitude, height, speed etc
Compatible with the following transmitters
Futaba: 3PK, 3PM, 7U, 8U, 8J, 9C, 9Z, 10C, FN series, T10C, FC-18, FC-28, FF7
Hitec: Optic 6, Eclipse 7, Prism 7
WFLY: WFT09, WFT08
*Requires the transmitter dashboard extension module and receiver based upgrade components - Coming soon
