The ultimate 5.8Ghz wireless audio video solution -Period!
The D58-4 receiver supports "Diversity Mode", meaning one receiver with 4 different polarized antennas or 4 different types of antenna to compare and switch between automatically for receiving the best video signal.
It is the ultimate solution when you have two high gain directional antennas or one stock antenna with one high gain antenna installed to a D58-4 receiver. In addition, if you have an auto antenna tracker, these receivers are a must for your antenna tracker!
Serious FPV pilots can use this to achieve 360 degree coverage, or just additional safety by combining four antennae with different characteristics, such as 3 x patch + 1 x cloverleaf. This is a set up which will give you pretty much the best wireless video link you can get.
Features:
• Four-channel receiver for best reception
• Automatic antenna switching
• Black and yellow shell color optional
• Triple, buffered AV outputs
• Can receive 4 different channels at the same time
• Not affect by 2.4GHz R/C Radios
• AV receiver with diversity inputs
• Small, lightweight and anodized aluminum case
Specs:
Receiver frequency:
CH1: 5705MHz
CH2: 5685MHz
CH3: 5665MHz
CH4: 5645MHz
CH5: 5885MHz
CH6: 5905MHz
CH7: 5925MHz
CH8: 5945MHz
Video output: 75ω/1Vp-p
Audio output: 10Kω/500mVp-p
TV system: PAL/NTSC/SECAM
Input voltage: 8 to 12V/500mA
Includes:

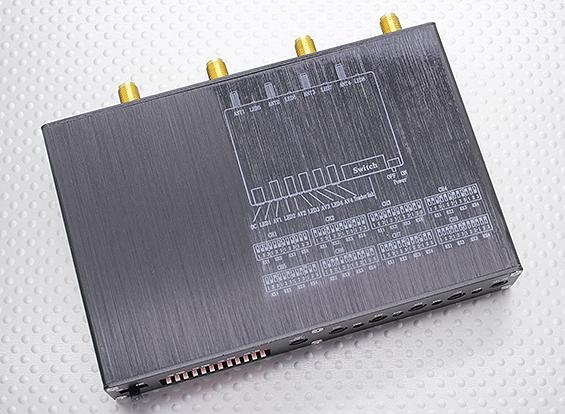

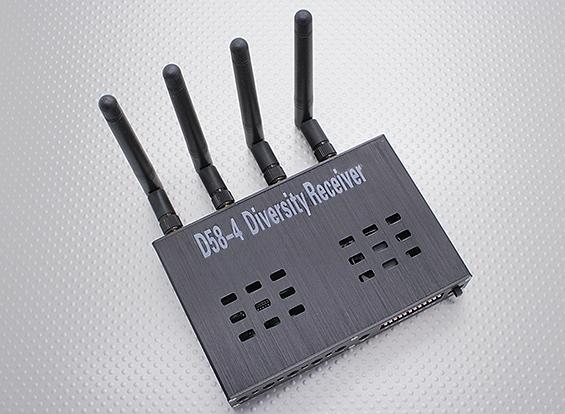

1 x D58-4 diversity receiver
4 x 5.8G 2dBi antenna
1 x power plug

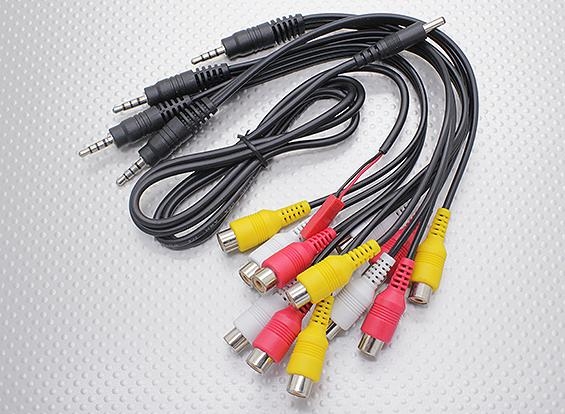

4 x AV-out cable
