The Dension WiFi RC receiver system allows you to control your RC car, boat, tank, construction machine or any other RC vehicle with your iPhone/iPod/iPad or Android smartphone using WiFi. The iOS or Android application, available for free, lets you drive with on-screen joysticks or by tilting the phone, while watching the real-time video stream coming from your vehicle.
You can quickly access 8+4 channels of output, adjust the sensitivity and trimming, just like on a professional transmitter.
The Dension WiFi RC adds a brand new, high-tech and fun way to drive your RC models.
*Note: This listing is for the WiRC control unit only. WiFi dongle and USB camera not included. Full system with USB camera and WiFi dongle can be found in the related items section below.
Features:
• 8 PPM output channels for Servo or ESC control
• 4 digital outputs (on/off)
• 4 digital inputs (on/off)
• 1 analogue input
• Failsafe function
• Battery voltage monitoring
• Up to 2 digital USB cameras (with an external USB HUB)
• Microphone input*
• Speaker output*
• Video recording
Compatible with the following devices:
iPhone 4S, 4, 3Gs and 3G (minimum iOS version: 4.0)
iPod Touch
iPad
Android (beta)
Technical specs:
Dimensions: 44x28x18mm
Power supply: 6~16V
Comes with Tamiya power connector
240 MHz ARM9 processor
16 MB SDRAM
4 MB FLASH
2 USB Host ports
802.11b/g WiFi, Infrastructure and AP modes
Power consumption:
100mA @ 6V idle,
200 mA @ 6V cam. & WiFi on
Open protocol**
Write your own transmitter application for any smartphone / tablet to control the way you want.
Software SDK**
Add new applications to the embedded Linux operating system of your WiFi RC. No-one has an FTP server on wheels yet :)
** Contact us for further informartion

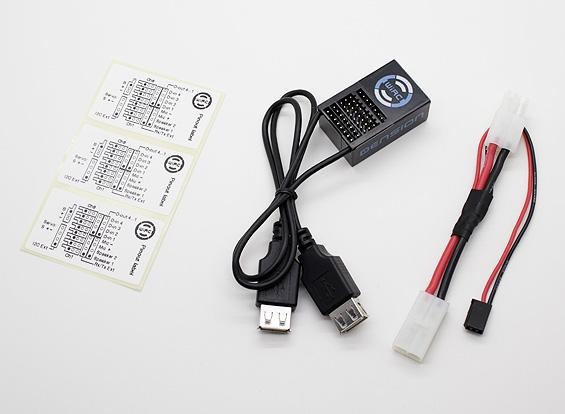

Package contents:
WiRC control panel
User and Installation Manual
Non disp.
