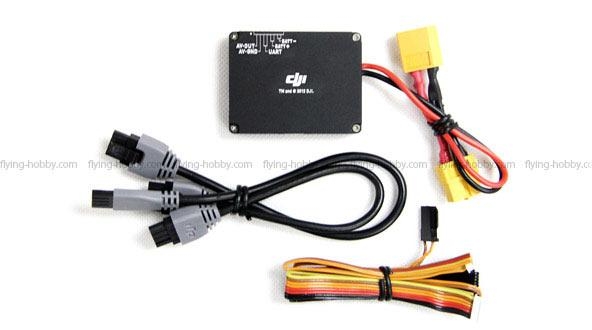

DJI IOSD On Screen Display

Cod. DJI-IOSD

Features :

The flight data overlay, including power voltage, aircraft attitude, the GPS signal, flight mode, height, distance, speed, etc..
Firmware upgrade online, free of charge for a better user experience and greater functionality.

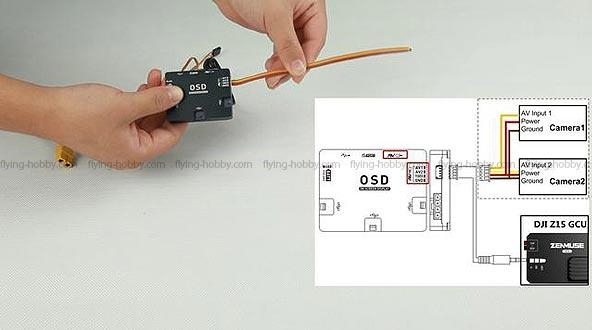

Can be simultaneously connected to a dual-camera switching between video sources.
Can remotely switch DJI5.8G Illustrated Biography Channel.
DJI flight control system WKM (follow-up support will WKH, Ace One, Ace WP).
Compact 52 * 41 * 11mm; Weight 42g.
Support for 3-6S lithium battery.

Performance Parameter

Video Input Model	PAL/NTSC
Video Output Model	PAL/NTSC

Physical Parameter

Temperature	-20℃~70℃
Size	52mm X 41mm X 11mm
Weight	42g

Hardware Supported

Voltage	3S~6S
Current(Typical Value)	51mA@25.2V 87mA@12.6V
Rated Power	1.25W
Controller Supported	WKM

Software Supported

Build-in Function

1.iOSD Information Transmission
2.Video Transmission, Two Video Signal Channels Input & Switch
3.Channel Switch Supported for the Wireless Video Transmitter Module specified by DJI
4.DJI Z15 Supported

http://www.youtube.com/watch?feature=player_embedded&v=hMN0A5VWoW0
