DJI Matrice 210 RTK

Name: DJI Matrice 210 RTK
SKU: DJI-M210-RTK
Availability: OutOfStock

Cod. DJI-M210-RTK

Dati Tecnici - Technical Data

DJI Matrice 210 RTK
I motori ad alte prestazioni dotati di eliche da 17 pollici assicurano un volo stabile anche con forte vento.
Il nuovo sistema di alimentazione a doppia batteria che riscalda automaticamente le batterie quando vola in temperature sotto lo zero,
il disegno chiuso del drone garantisce la resistenza agli agenti atmosferici e all'acqua, in modo da poter volare in una vasta gamma di ambienti.

7km OPERATION RANGE
38min MAX FLIGHT TIME
IP43 level INGRESS PROTECTION
2KG MAX PAYLOAD CAPACITY

SEMPRE PRONTO
I bracci della serie M200 si piegano per essere trasportati rapidamente.
Le gambe del carrello vengono smontati con uno scatto durante il trasporto in modo che sia pronto per volare in pochi minuti.
Dimensioni e peso degli aeromobili
716mm x 220mm x 236mm

Sistema di navigazione RTK integrato.

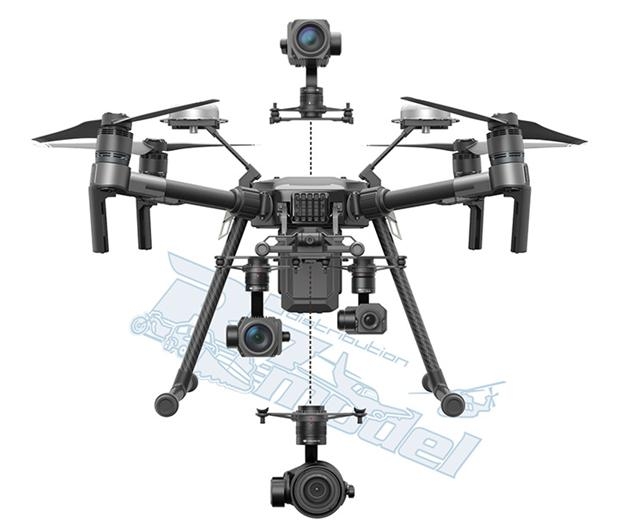

Il Matrice 210 RTK supporta fino a due camere conteporaneamente.

DJI Matrice 210 RTK

M210-RTK
AIRCRAFT

Model M210-RTK
Package Dimensions 31.1×15.4×11.4inch (790×390×290mm)
Dimensions (unfolded) 34.9×34.6×16.1 inch (Unfolded, 887×880×408 mm),
Dimensions (folded) 28.2×9.5×9.3 inch (Folded, 716×242×236 mm)
Folding Method Folded Inward
Diagonal Wheelbase 25.3 inch (643 mm)
Number of Batteries 2
Weight (TB50) Approx. 4.27 kg
Weight (TB55) Approx. 5 kg
Max Takeoff Weight 6.14 kg
Max Payload (2 TB50) Approx.1.87 kg (with two standard batteries )
Max Payload (2 TB55) Approx.1.14 kg (with two optional batteries)
Hovering Accuracy (P-mode with GPS) Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled)
Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)
Max Angular Velocity Pitch: 300°/s, Yaw: 150°/s
Max Pitch Angle P Mode: 35°（Forward Vision System enabled: 25°）； A Mode: 35°；S Mode: 35°
Max Ascent Speed 16.4 ft/s (5 m/s)
Max Descent Speed Vertical: 9.8 ft/s (3 m/s)
Max Speed P-mode: 61 kph (17 m/s); S-mode/A-mode: 83 kph (23 m/s)
Max Service Ceiling Above Sea Level 1.86 miles (3000 m)
Max Wind Resistance 32.8 ft/s (10 m/s)
Max Flight Time(No Payload, with TB50) 23min
Max Flight Time(No Payload, with TB55) 32min
Max Flight Time(Full Payload, with TB50) 13min
Max Flight Time(Full Payload, with TB55) 24min
Motor Model DJI 3515
Propeller Model 1760S
Retractable Landing Gear Standard
Operating Temperature -4° to 113° F (-20° to 45° C)
IP Rating IP43

GIMBAL INSTALLATION
Downward Gimbal Mount Supported
Upward Gimbal Mount Supported
Downward Dual Gimbal Supported

BATTERY (STANDARD)
Model TB50
Capacity 4280 mAh
Voltage 22.8V
Voltage LiPo 6S
Energy 97.58 Wh
Net Weight Approx. 520g
Operating Temperature -4° to 113° F (-20° to 45° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 41° to 104° F (5° to 40° C)
Max Charging Power 180 W

CHARGER
Model IN2C180
Voltage 26.1 V
Rated Power 180 W

FORWARD VISION SYSTEM
Obstacle Sensing Range 0.7 - 30 m；
FOV Horizontal 60°，Vertical 54°
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

DOWNWARD VISION SYSTEM
Velocity Range <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)
Altitude Range <32.8 feet (10 m)
Operating Range <32.8 feet (10 m)
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Surfaces with clear patterns and adequate lighting (> 15 lux) 0.33-16.4 feet (10-500 cm)
Ultrasonic Sensor Operating Environment Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

GIMBAL
Compatible Gimbals Zenmuse X4S
Zenmuse X5S
Zenmuse Z30
Zenmuse XT

REMOTE CONTROLLER
Model GL6D10A
Operating Frequency 2.400-2.483 GHz
5.725-5.850 GHz
Max Transmitting Distance(unobstructed, free of interference) 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC)
5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
EIRP 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC)
5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
Video Output Ports USB, HDMI
Power Supply Built-in battery
Charging DJI charger
Dual User Capability Host-and-Slave connection
Mobile Device Holder Tablet or Smart Phone
Max Mobile Device Width 170 mm
Output Power 9 W (Without supplying power to smart device)
Operating Temperature -4° to 104° F (-20° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Battery 6000mAh 2S LiPo
USB Supply Power iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)

BATTERY (OPTIONAL)
Model TB55
Capacity 7660 mAh
Voltage 22.8V
Battery Type LiPo 6S
Energy 176.93Wh
Net Weight Approx. 885g
Operating Temperature -4° to 113° F (-20° to 45° C)
Storage Temperature Less than 3 months: -20° C to 45° C
More than 3 months: 22° C to 28° C
Charging Temperature 41° to 104° F (5° to 40° C)
Max Charging Power 180 W

DJI GO APP
Name DJI GO 4
Mobile Device System Requirements iOS 9.0 or later,Android 4.4.0 or later
Supported Mobile Devices iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus. Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1.
*Support for additional devices available as testing and development continues.

UPWARD INFRARED SENSOR
Obstacle Sensing Range 0-16.4 feet (0-5 m)
FOV ±5°
Operating Environment Large-sized object with diffuse relecting surface or high relective rate (>10%）
