Introducing our Doctor Mad Thrust High performance EDF motor series. Our Doctor has been busily working away behind the scenes to come up with this MAD series of EDF motors.......Power? - Not lacking with these!

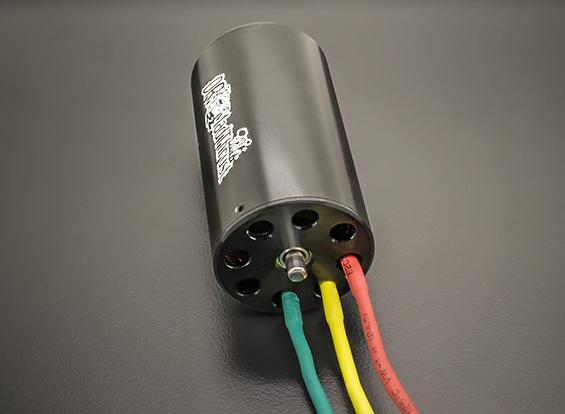

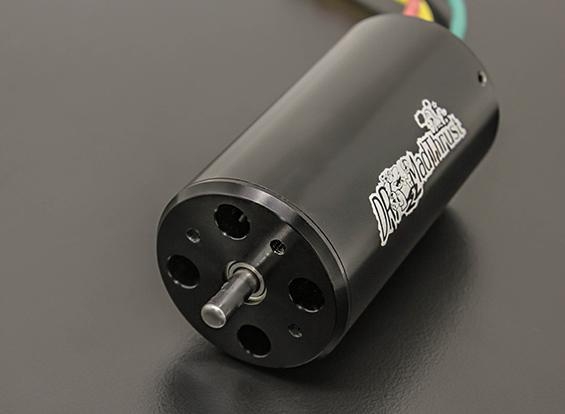

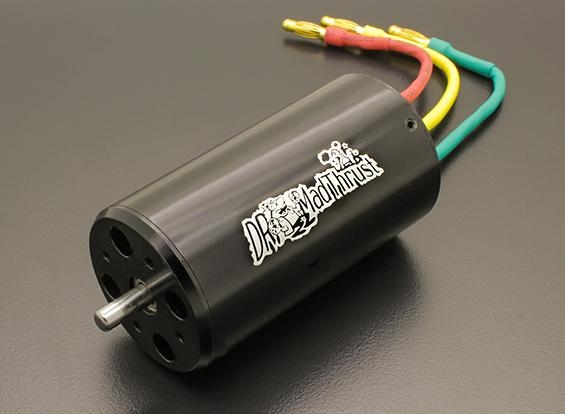

This is 1620kv 6s version to suit 90mm EDF units, with a whopping 2400watt power output this 36mm inrunner is not to be sniffed at!
The Dr Mad Thrust range of EDF inrunners have been built with only one thing in mind - maximum EDF performance! They feature high temperature stator windings, high quality bearings, are precision balanced for smooth running and are of a 4 pole design.
Over-engineered to handle the stress and strain of high performance EDF units and high 'C' rated packs. The Doctor has been hard at work to bring you a series of bullet proof, extreme performance EDF motors that are built to last.
Get a Doctor Mad Thrust power house for your EDF!
Specs:
RPM/V: 1620kv
Voltage: 2-6s
Max current: 100A
Max Power: 2400 watts
Suggested Rpm Operating Range.
High Blade Count: 32000rpm
Low Blade Count: 37000rpm
Poles: 4
Diameter: 36mm
Front Mounting Hole Distance: 25mm
Shaft Diameter: 5mm
Shaft Length: 13mm
Front mount Thread Size: M3
Plug type: Bullet-Connector 4mm
Weight: 317g
Non disp.
