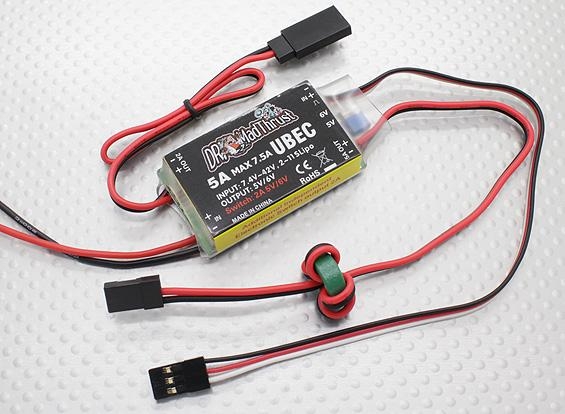

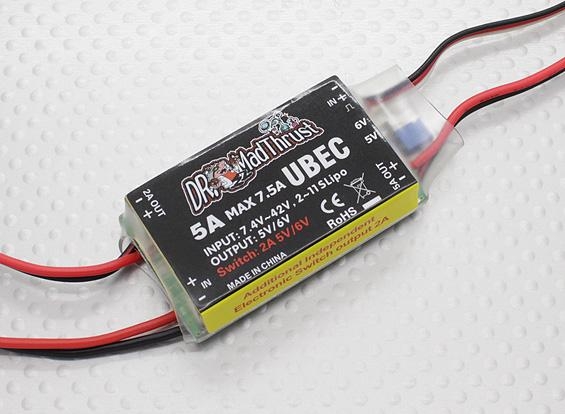

Dr. Mad Thrust series 5A HV BEC with Inbuilt Aux Controlled On/Off Switch for Accessories - An efficient switching regulator providing a reliable and efficient 5A (7.5A burst) power supply for your RX, which is 5v or 6v selectable via a jumper plug. Input voltage ranges from 7.4v (2s) to 42v (11s) and the unit has been designed to offer minimal output noise.
Uniquely, this BEC also features an inbuilt DC switch that is operated by a spare Aux Channel, this feature can be used to power and switch on/off a wide variety features such as navigation/landing lights, bomb drop, canopy operation and of course our Dr Mad Thrust machine gun sound module and machine gun LED system (see related items)....in fact at 2A output, the inbuilt switch can handle a huge variety of features you may want to fit to your model!
Specs:
Input Voltage: 7.4v~42v (2s~11s Lipo)
Output Voltage: 5v/3A or 6v/3A
Output Current: 5A Continuous or 7.5A burst
Quiescent Current: 20mAh
Electronic Switch Output: 2A, 5V or 6V
Dimensions: 50mm x 12mm 28mm
Weight: 30g
