DS-7002 HV BK CYCLIC SERVO

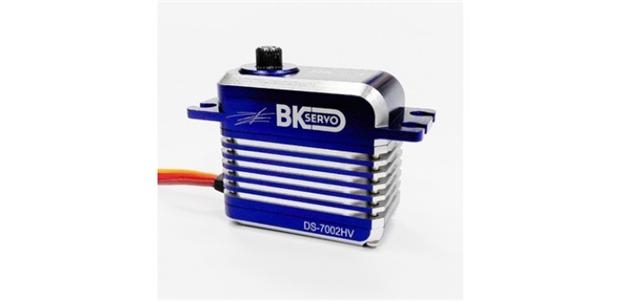

Full Size Cyclic Servo DS-7002HV

This coreless cyclic servo offers lightening fast speeds, plenty of torque, a thermal efficient case and it is 100% high voltage compatible. Ideal for 600, 700 and even 800 class machines.

Features:

- High Voltage
- High Speed
- Excellent Centering
- Compatible with Futaba type horns/arms
- Unique CNC Design
- Light Weight

- Operation Voltage: 6V – 8.4V
- Weight: 66g (2.33 Oz)
- Torque: 17 kg.cm (236 oz.in) @ 6V | 19.1 kg.cm (264.5 oz.in) @ 7.4V | 21.1 kg.cm (292.3 oz.in) @ 8.4V
- Speed: 0.07 sec/60 @ 6V | 0.054 sec/60 @ 7.4V | 0.047 sec/60 @ 8.4V
- Dimensions: 20x40x37 mm
- Frequency: 1520us/333 hz
- Gear Type: Metal
- Motor Type: Coreless
