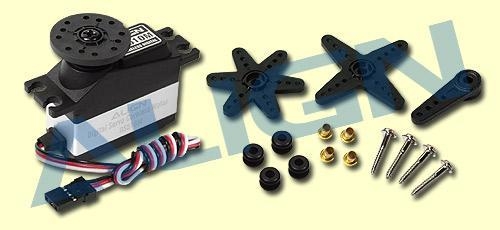

DS510M Digital Servo

• High rigidity, shock resistant metal gears.
• Coreless Motor Design for fast speed, high efficiency, and low power consumption.
• 10 Bits signal resolution for smooth movements.
• Fast speed with high torque of 4.6kg/cm. High strength composite alloy gears with high precision and durable structure characteristics.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servos high efficiency.
• Supports digital & analog control signal.
• Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use.


• Stall torque: 3.7kg.cm (4.8V) / 4.6kg.cm (6.0V)
• Motion speed: 0.13sec / 60° (4.8V) / 0.11sec / 60° (6.0V)
• Rating voltage: DC 4.8 - 6V
• Temperature range: -20°C ~ +60°C
• Dimension: 35 x 15 x 29.2mm
• Weight: 29.0g
• 1520µs standard band
