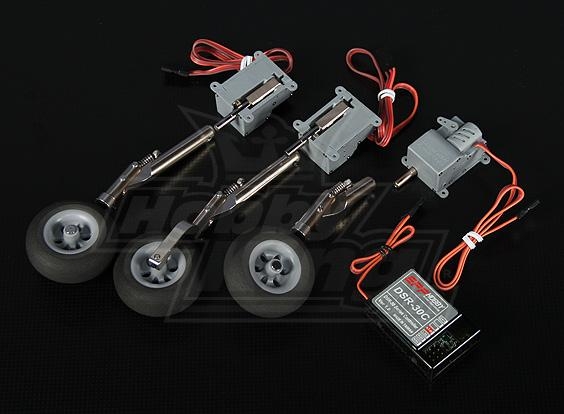

The EPF DSR-30TR Electric Retract Set contains everything you need for fitting retracting under-carriage to models up to 0.30 size, AUW up to 1.8kg, requiring a 3 leg under-carriage. These units offer a simple and quick to install, reliable and elegant solution to the problems associated with traditional air and mechanical retract sets.
The Oleo legs included in this version are alloy Trailing Link type, with 43mm foam wheels.
The included control unit features leg stall detection, and will shut down any leg that is trapping against the fuselage to ensure the leg will come back down for landing and also features a low power warning light. The retract units feature metal parts for stength and reliability, with a steering mechanism fitted to the front retract unit (seperate servo required).
Specifications:
Weight: 134g (all components)
Oleo Length (Pin to axle): 96mm
Pin diameter: 4mm
Retract Screw Spacing: 28mmx26mm
Operating Voltage: 6v~7.4v
Wheel: 43mm x 17mm
Included:
Control Unit
Instructions
Main Retract Units (x2)
Front Retract Unit
Main Oleo Legs with Wheels (x2)
Front Oleo Leg with Wheel
Note: The EPF series of retracts are a high quality, well engineered product manufactured in Ta
