The DSR-46TW Electric Retract Set contains everything you need for fitting retracting under-carriage to a 0.40 - 0.60 size model, requiring a trike under-carriage, weighing 1.8kg - 3.6kg. These units offer a simple and quick to install, reliable and elegant solution to the problems associated with traditional air and mechanical retract sets.
Wire Legs are included in this kit, with 57mm [2.26 inch] scale, rubber wheels, these legs can be cut down to suit the length required for your model.
The included control unit features leg stall detection, and will shut down any leg that is trapping against the fuselage to ensure the leg will come back down for landing and also features a low power warning light. The retract units feature metal parts for stength and reliability and the front leg is steerable via a servo (not included).
Specifications:
Weight: 282g (all components)
Leg Length (Pin to axle): 134mm (4mm wire)
Pin diameter: 5mm
Retract Screw Spacing: 40mmx33mm
Operating Voltage: 6v~7.4v
Wheels: 57mm x 22mm

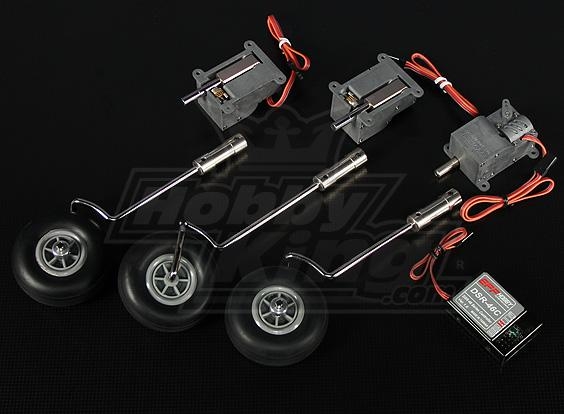

Included:
Control Unit
Instructions
Main Retract (x2)
Front Retract with Steering Horn
Wire Type Under-carriage Legs, with Alloy Adapters & Wheels.
