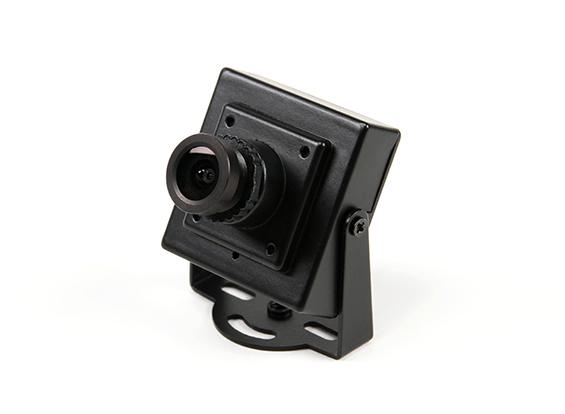

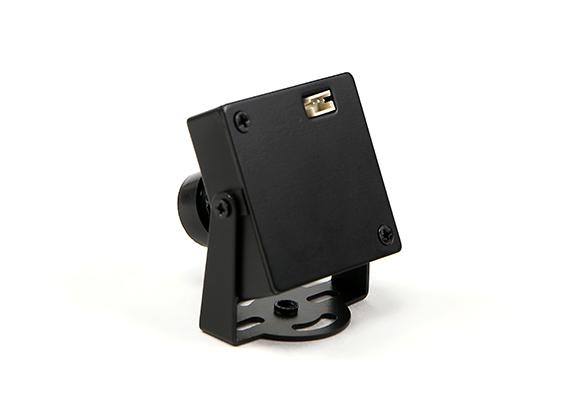

EMAX 800TVL HD FPV Variable Focus Camera PAL

Enhance your FPV video experience with the EMAX 800TVL HD variable focus camera.
The EMAX 800TVL offers true HD image quality with 800TV Lines with auto tone reproduction (wide dynamic range) and on screen controls. The EMAX 800TVL range of FPV cameras offer a 6-15V input range for maximum flexibility.

The camera system is supplied complete with mounting bracket, lead and screw set.

Features:
• FPV tuned white balance and gain control
• 800 TVL high resolution camera
• Compact size
• Integrated 2 axis metal mount

Specs:
Signal System: PAL
Resolution: 976Hx494V
Pixels: 726X 582
Min Illumination: 0.1LUX/F1.2
Signal to Noise Ratio: ≥48dB
Video output: 1.0V p-p (75ω BNC)
Auto gain: 0.25/0.50/0.75/1.00 max 55dB
Gamma: 0.45/1.0
Lens: 3.6MM/2.5mm/2.8mm optional
Power Supply: DC 6-15V(2-3s LiPoly)
Power Consumption: 20mA
Operating Temp: -20~60°C
Size: 44 X 40 X 30mm (inc mount)
Weight: 67g

Includes:
Camera
Mounting bracket
Lead
Screw set
