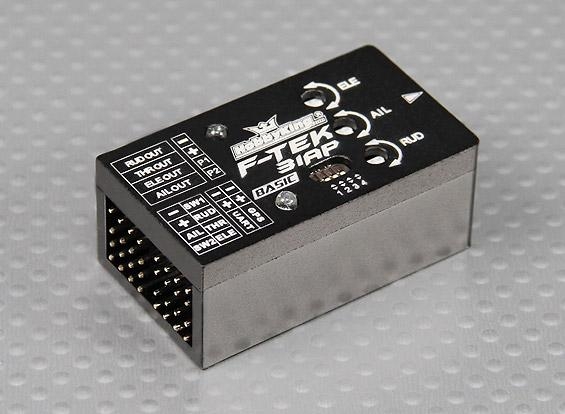

The F-TEK 31AP is an inertial attitude measurement instrument used for automated stabilization of fixed wing model aircraft and simple three axis camera gimbals It features an integrated three-axis gyro and three-axis accelerometer which controls the aircraft movement in three-dimensional space. This flight controller is an advanced all-in-one solution for ultra stable fixed wing aircraft flight! It supports standard fixed wing, V-tail and Delta (elevon) wing configurations making it compatible with just about any model.
The F-TEK 31AP also incorporates an accurate barometric pressure sensor. At start up, the take-off air pressure is measured, providing the autopilot with an accurate relative height data.
This flight controller supports the use of a GPS module (included) which enables the autopilot to calculate the flight course and exact location of the aircraft. This allows for precise GPS positioning as well as "return to home" functionality. If the FY31AP is not connected to the GPS module, the autonomous flight system cannot be engaged and it will function purely as a flight stabilizer.
Features:
• Easy installation
• 3-axis accelerometer and 3-axis gyro stabilization
• Self-leveling flight stabilization
• Integrated barometric pressure sensor
• GPS module included
• Easy access gain adjustments for flight tuning
Specs:
Input voltage: 4.0 ~ 6.0V
Current draw: 50mA (5V)
Size: 47x27x20mm
Weight (excluding wires): 25g
Temperature range: -25 ° C ~ +70 ° C
Maximum rate of rotation: ≤ 2000 ° /s
Includes:
F-TEK 31AP Flight Controller
GPS module
USB connection cable
All required wire leads and mounting accessories
