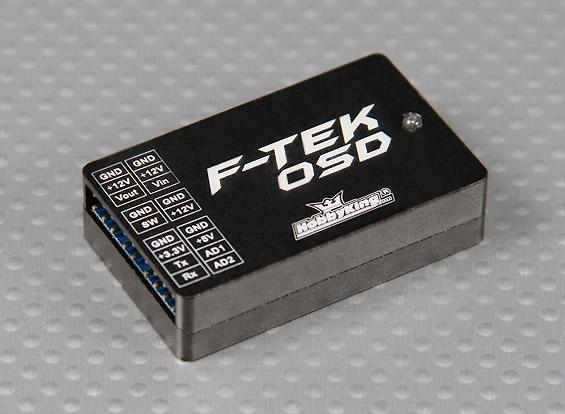

F-TEK OSD Video Overlay Module w/GPS

The F-TEK OSD overlays flight telemetry information onto your video image. The telemetry information displayed includes flight altitude, flight speed, flight direction, home direction, GPS positioning and more. You also can save the telemetry information to a MICRO SD card (available separately).

The F-TEK OSD automatically adapts to either PAL or NTSC video input and confirms if there is a MICRO SD card or not. The adaptive processes are within about 20 seconds. Once the input video is detected (even if there is interruption to the video signal), the telemetry data of the F-TEK OSD will continue to be transmitted via the video stream.

Specs:
Input voltage: 3.0 ~ 3.3 Volt
Current draw: 60mA (3.3V)
Size: 32x32x10mm
Weight (excluding wires): 22g
Temperature range: -25 ° C ~ +70 ° C

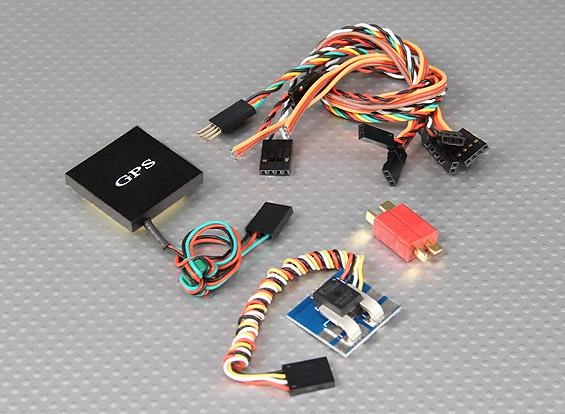

Includes:
F-TEK OSD System
GPS module
Current sensor
USB connection cable
All required wire leads and mounting accessories
