Turnigy SK3 Competition Series motors are the newest addition to our SK3 motor line-up offering the absolute best quality, performance and efficiency for your model on a competition level. Each and every SK3 Competition Series motor is thoroughly inspected and tested to ensure the high efficiency and top performance required for meeting the demands of competition flying.

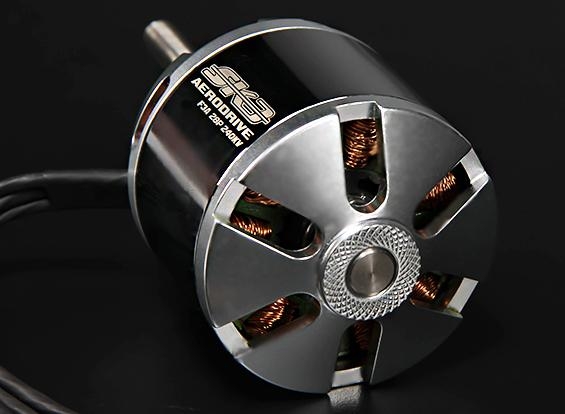

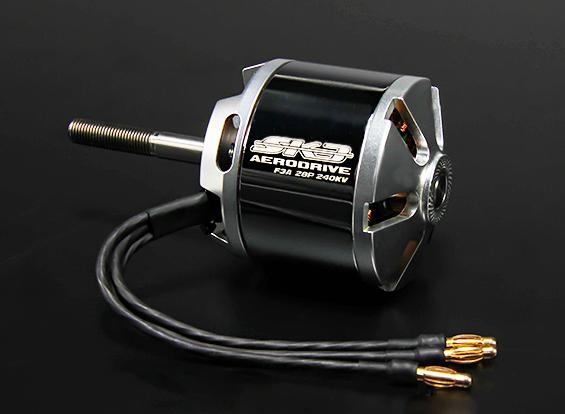

Turnigy F3A SK3 Competition Series motor is a top quality outrunner designed specifically for use in todays high performance F3A Aerobatic models.
We instructed our engineers to source the best quality magnets, bearings and materials available to them and develop a motor that would not only rival, but surpass the quality of many leading motor manufacturers on the market today.
The result is an efficient, high caliber motor using quality double shielded bearings, sintered Neodymium magnets and a string wound stator ensuring an accurate and consistent winding each and every time.
The Turnigy SK3 motors are suited to modelers who are seeking a top quality brushless motor without compromise.
Our F3A Outrunner is designed for use in 1.8-2.0m span F3A Aerobatic models, running on 10S Lipo batteries and swinging propellers in the region of 18-21 inch diameter.

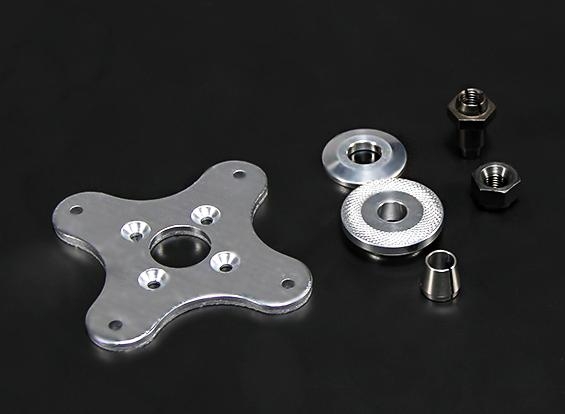

Includes:
• Collet style prop driver
• Collet type Prop lock nut
• Alloy Motor Mount
Specs.:
Turns: 6T
Voltage: 10S Lipoly
RPM/V: 240kv
Motor Poles: 28
Timing: 20-25 degrees
Internal resistance: 0.021 Ohm
Max Loading: 75A
Max Power: 2770W
Shaft Diameter: 8mm
Shaft Length: 50mm
Mounting screw Spacing: 75mm (M4x4)
Weight: 590g
Non disp.
