The new AttitudeSD is the best all round FPV headset in the Fat Shark lineup. Smaller and lighter than its predecessors, the AttitudeSD is packed with new technology and features to deliver outstanding performance.
The new 35 degree FOV display strikes a perfect balance between large screen immersion and compact pixel density clarity. The AttitudeSD sports the same polarized backlight technology used in the gorgeous Dominator display for vibrant colors and has adjustable IPD for dialing in the optic sweet spot.
On the head tracker side, the AttitudeSD includes the latest generation MIG tracker (V4) with new algorithm refinements for drift free precision head tracking. The integrated 5G8 receiver module is latest generation with improved sensitivity that increases range by a dramatic 40% over previous models. The module has also has improved high pass filtering to make it impervious to 433Mhz and 2.4Ghz UHF radio interference.
The improvements extend to the exterior as well with a rubberized velvety texture, tactile motion IPD sliders, secured rubber eye cups and a thinner head strap. This headset looks and feels great from the inside out. You'll be the envy of your fellow FPV pilots.

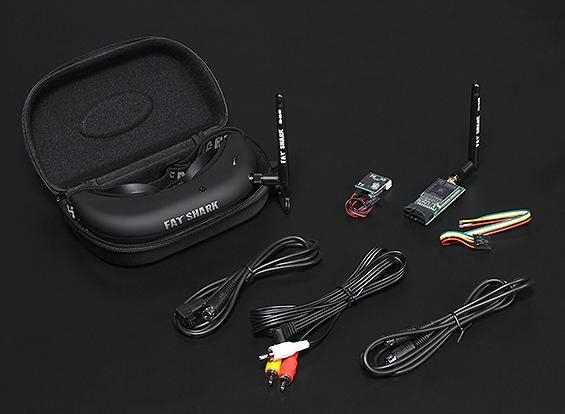

Kit Includes:
AtttitudeSD headset (with integrated 5G8 RX and HeadTracker)
250mW 7ch 5G8 TX

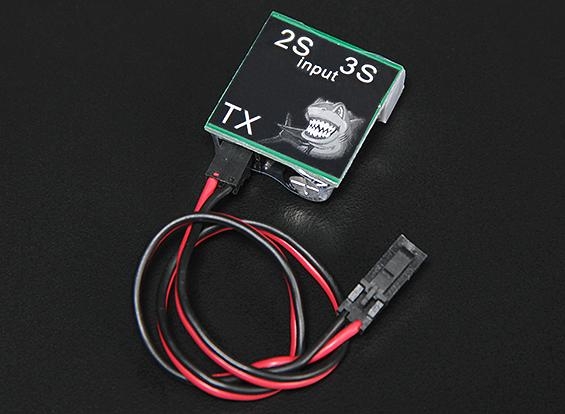

Filtered balance lead adapter
2p 3dBi 5G8 antenna
3m AV cable
Futaba data cable
ezUHF data cable
Zipper carry case
Lens cleaner cloth
Headset Specifications:
Optics: FOV (field of view): 35°diagonal (Image size: 1.3m @ 2m)
Interpupillary (IPD) distance: 59 – 69 mm (adjustable)
Supports optional diopter lens inserts: -2, -4, -6 dpt
Audio: Stereo (requires adjustable volume earphone accessory)
User Controls: Channel selection/ head tracker reset
Electrical: Power supply: 7 - 13 V (2S/3S supply)
Power consumption (@7.4V nominal): 300mA wireless/ 150mA direct mode (RX off)
Antennae: External dipole (RX is circular polarized compatible)
Display: Full color LCD LED backlit Kopin CyberDisplay 922,000 pixels binocular display (640 X 480 VGA) NTCS/PAL auto selecting
Head Tracker: MIG V4 (magnetic, inertial and gyro sensors)
Battery: 7.4V 1000mAh (required, not included)
Weight: 150g
Interface:
3.5mm AV in/out port
3.5mm stereo earphone port
PS/2 DIN head tracker data port
Operating Frequencies:
5740 MHz, 5760 MHz, 5780 MHz, 5800 Mhz 5820 MHz 5840 Mhz 5860 MHz

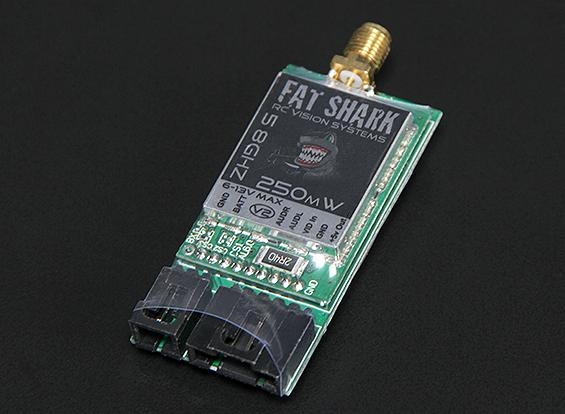

Transmitter Specifications:
Power supply: 7-13 V (2S/3S supply)
Power rating: 310mA @7.4V
TX power: 250mW
Antennae: External dipole (circular polarized compatible)
Size: 55x26x11mm
Weight: 22g (w/antenna)
