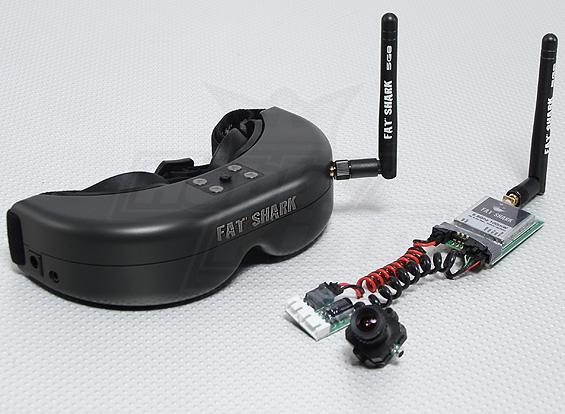

Fat Shark Predator RTF FPV Headset System w/Camera and 5.8G TX

The easiest way to get started with FPV!

HobbyKing and Fat Shark have worked together to bring you a Ready to Fly package that eliminates the guess work typicaly associated with FPV setups. This easy to use all-in-one solution provides a scalable platform that is simple to put together yet allows for upgrades to your setup as you progress.

By incorporating brand new LCD technology into a completely redesigned headset and bundling this with a camera & 5.8G TX, Fat Shark has lowered the entry price point for aspiring new FPV pilots.

The Predator's 25-degree FOV VGA display has the same resolution offered by higher end VGA headsets and will show the same camera and OSD detail. The Predator is equipped with the M.I.G (magnetic, inertial, gyro) head tracker and when combined with a pan/tilt camera, delivers a truly immersive FPV experience.

The integrated 5.8Ghz receiver allows new pilots to quickly experience video piloting without the hassles and expense of external receivers.

This is the full system combo that gives you everything you need to start FPV flying with your model!

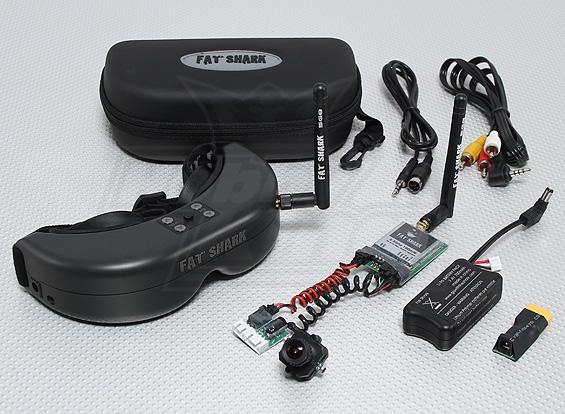

Included in box:

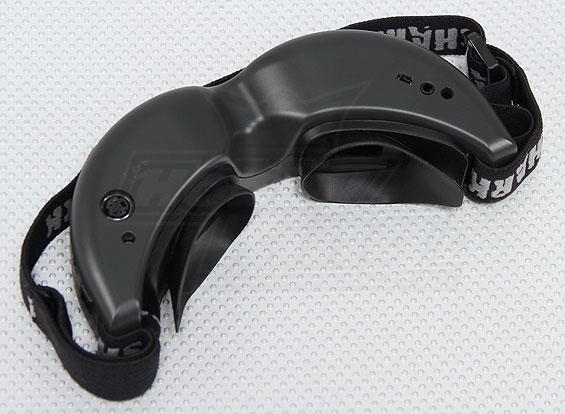

- Predator VGA headset with integrated head tracking and 5.8G receiver.
- 5.8G 100mW Transmitter
- Zipper carry case
- Head tracker data cable (for Turnigy 9X)
- AV cable (for connecting to external AV devices viewing/recording)
- 5.8G 3dBi antenna
- 700mAh 7.4V battery pack with RC charger leads (charged via standard RC chargers)
- Adapter plug for headset battery connector to XT60
- Manual

Headset Specifications:
- FOV 25 degree diagonal, full color VGA resolution LCD display
- Interpupillary distance: 63.5mm fixed
- NTSC/PAL auto select (interlaced)
- Magnetic, inertial, gyro head tracker
- -85dBm 5.8G 7 channel receiver
- Battery: 700mAh, 7.4V
- Power consumption @ 7.4V: 140mA/290mA (wire/wireless)

Camera Specifications:
- Lens: 3.6mm IR coated 87 degree FOV
- Audio: Left/right stereo low sensitivity
- Electrical: 3.5-5.5V, 60mA @ 5V
- Mechanical: high impact plastic, 15g, lens locking ring
- Imager: ¼” 420TVL CMOS, NTSC
- Termination: 5p Molex (IRC/Fat Shark TX plug/play)

5.8G TX Specifications:
- Frequency: 5.8Ghz
- Transmitting power: 100mW
- Input voltage: 6~12V

Recommended accessories:
- Turnigy 9X radio (supports head tracking function)
- Futaba Data cable (for use with higher end Futaba radios that support selective trainer function).
- Diopter lens sets (for near sighted users, 6p set with -2, -4, -6 dpt lens).
