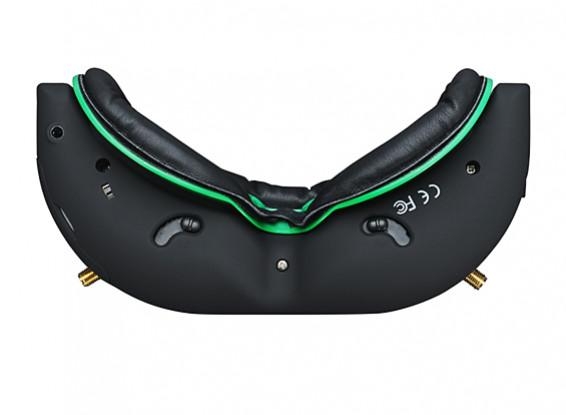

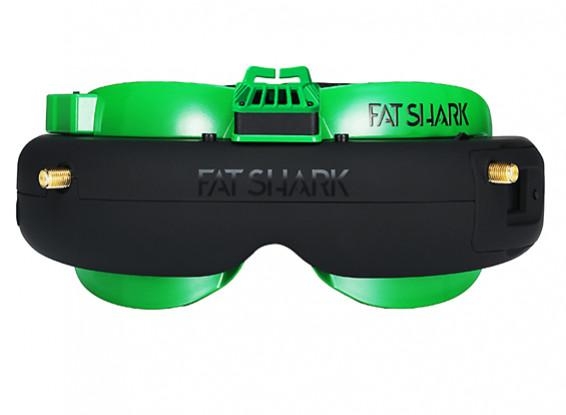

Fatshark Attitude V5 FPV Goggles

Fatshark Attitude V5 FPV Goggles

The limited-edition machine green FatShark Attitude V5 headset is out now. It has stepped up to have the same great 30° field of view (FOV) as the Dominator V3 and comes complete with the high-performance VGA OLED microdisplays for great FPV viewing. This will have you racing.

The integrated DVR allows you to record all your highly dynamic flights and winning races. Plus, there is the excellent 5.8GHz OLED 32 channel video receiver to provide better image stability with improved signal sensitivity. The receiver has a simple-to-use one-touch band changing capability with channel scanning and a spectrum analyzer for clean and easy channel selection. The built-in exhaust fan keeps your vision clear.

This is an exciting package that FatShark have put together to ensure the Attitude V5 will give you the complete viewing experience.

Features:
• OLED 32 channel receiver module with improved signal sensitivity and stability
• 30° field of view (FOV)
• 59-69mm IPD Range (adjustable)
• 4:3 VGA 640 x 480 display
• NTSC/PAL auto-selecting
• Modular Receiver Bay
• Digital Video Recorder (DVR) (no audio)
• Exhaust fan for fog-free viewing
• DC in: 7~13V (2S~3S)
• Power consumption: 2.7W

Specs:
Headset Specifications:
Optic Engine:
Field of View (FOV): 30°
Inter-pupillary Distance (IPD): 59 - 69mm (adjustable)
Diopter Lens Slot: Available (lens purchased separately)
Display Resolution: 640 x 400 OLED
Video formats: NTSC / PAL auto selection

Electrical:
DVR:
Analog video recording
SD card support to 32GB (AVI file)
Support playback recording file
Firmware upgrade via SD card
Autosave recording file when power off

Wireless Receiver:
True Diversity Receivers with OLED display
(Auto Scan Channel / Spectrum Analyzer)

Interfaces:
DC Power port
AV in/out port
Earphone Jack

Color:
Green and Black

Fan Plate:
Face foam and velcro sticker (easy replacement)
Anti-fogging mini fan

Mechanical:
Dimensions: 168 x 83 x 71mm
Weight: 193g

Module Specifications:
OLED display: Frequency group, channel, frequency / antenna selection indication / RSSI
Button: Select Frequency group/channel/source mode
Power Supply: 3.3~5V
Sensitivity: ≤ -90 dB
RF Signal level: -90 dBm~+5 dBm
Video format: NTSC/PAL (Auto-select)
Operational environment: -10~65 °C

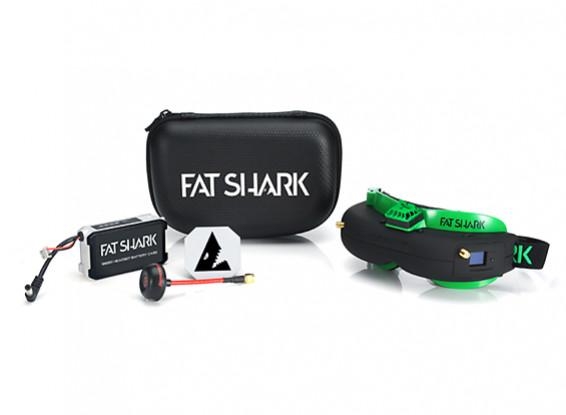

Contents:
Attitude V5 OLED Headset w/ Face Plate
5.8GHz Diversity receiver with OLED display
5.8GHz SpiroNET Circular Polarized antenna
5.8GHz FS RHCP patch antenna
18650 Li-ion Battery Case
Zipper case for carrying
