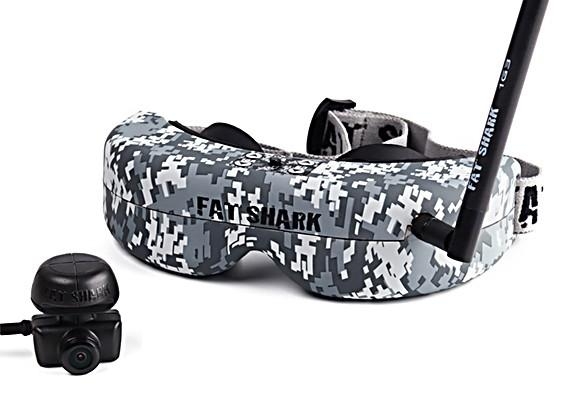

These Teleporter V5 FPV goggles are a full function, self-contained FPV viewing and receiver system that incorporates features normally only found on higher end models.
To start enjoying FPV, simply power the goggles with the included battery pack and connect the 1G3 Ground Camera/transmitter to working voltage from 3.9~6.0 Volts of your on board RC vehicle. (Always double-check polarity before connecting)
The Teleporter V5 features digital head tracking technology that eliminates the need for special RC radios as the display can zoom in on the image while the head tracker controls the viewing window (works best with a wide angle lens on a fixed camera). The head tracker also supports traditional pan/tilt servo mounted camera with trainer-equipped radios.
The supplied Camera incorporates a 25mW 1.3GHz transmitter inside a one-piece case that has been specifically designed to be splash proof so that the camera can be also used with ground-based vehicles.
Features:
• Large virtual image with 25° field of view
• Crisp 320 x 240 QVGA resolution display
• NTSC/PAL Auto Selecting
• Precision 9DOF 2-axis head tracking system
• Integrated 1G3, 7CH NexWave RF Receiver
• 1G3 Ground Camera included
Goggle Specs:
Field Of View: 25°diagonal
IPD: 63.5mm (fixed)
Audio: Stereo
Input Voltage: 7~13V (2s/3s)
Consumption: 200/350mA
Antenna: 1G3 dipole
Display: Full color QVGA LCD 230k pixels
Binocular Display: LCD QVGA 320 x 240
NTCS/PAL: Auto selection
Battery: 7.4V 760mAh
Weight: 163g
1G3 Ground Camera Specs:
Imager: 1/3” 700TVL CMOS
Lens: 2.2 mm (IR cut)
System: Analog NTSC
Tx Ouput: 25mW
Voltage: 3.9-6V
Control: Single push button to switch channel (1~8 then back to CH1)
Connector: 100mm cable, 3p 2.54mm molex servo connector
Frequency Chart:
| Channel | Frequency |
| 1 | 1080MHz |
| 2 | 1120MHz |
| 3 | 1160MHz |
| 4 | 1200MHz |
| 5 | 1258MHz |
| 6 | 1280MHz |
| 7 | 1320MHz |
| 8 | 1360MHz |
