1. No Blue Screen 1.Wireless FPV
2. No recording function 2.Baby Monitor
3. TF Card Support up to 32G 3.Wireless Visual Reversing Camera Transmission
4. High Video Quality 4.DVD/DVB AV Wreless Transfer
5. Speaker 5.Engineering Construction Monitor
6. Receiving Sensitivity:-90dBm 6.Wireless Video Leisure Goods
7. Frequency Control:built-in Frequency and Phase Lock Loop 7.Wireless Camera Security System
8. Support Wired & Wireless Camera, Photo Function, 8.Wireless Video Medical Apparatus
9. Motion Detection 9.Wireless Doorbell
| Display | |
| Brightness | 450cd/m² |
| Resolution | 1024x600 Pixels |
| Contrast | 700:1 |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| video Format | PAL-4.43,NTSC-3.58 |
| Viewing Angle | 75°/75°(L/R）75°/75°(U/D） |
| Input | |
| Input Signals | VideoAudio RF HDMI |
| Output | |
| Output Signals | VIDEO,3.5mm Earphone Jack |
| Power | |
| Input Voltage | DC：9~18V |
| Power Consumption | ≦13W |
| Built-in Battery | 7.4v/2200mA(2hours) |
| Enrivonment | |
| Working Temperature | ‐20~50℃ |
| Storage Temperature | ‐30~65℃ |
| Install Way | Includes a standard 1/4-20 tripod mounting hole on
the bottom for simple use in your ground station! |
| Dimension | |
| Size | 188.4L x 134W x29.2H mm |
| Weight | 500g |
|
Package Include:

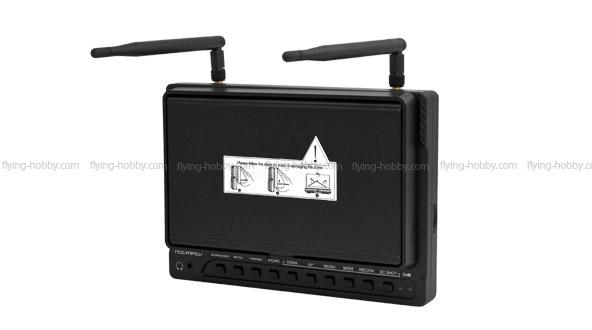

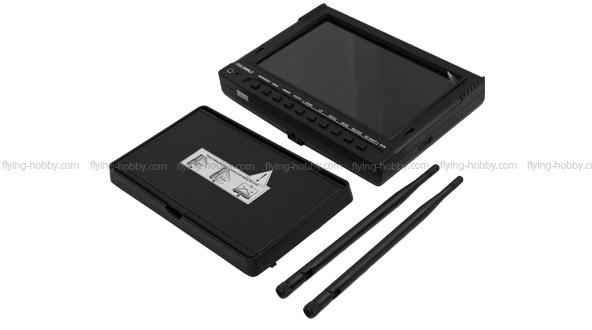

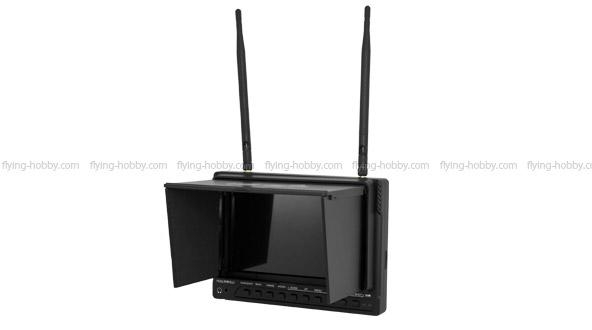

1 X FW-732 monitor with built in lipo battery
1 X Sunshade
1 X Power adaptor
1 X HDMI Cable
1 X Manual
