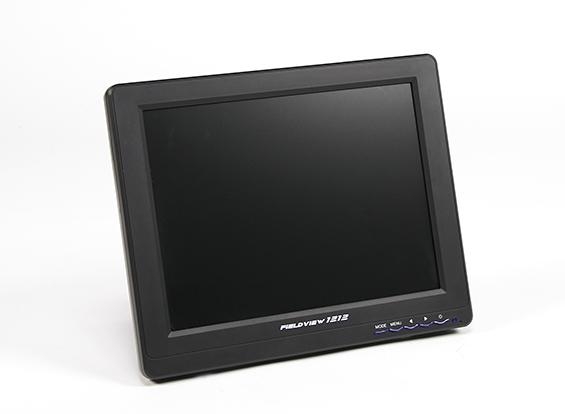

Who needs goggles when you have 12inches…………of FPV monitor! This is the ultimate for those who prefer a screen over goggles. The New FieldView 1212 is not just some random off the shelf monitor, it has been optimized for FPV use with features such as a non-blue screen if the input signal gets weak, a wide range of input voltages, an integrated 2 axis tripod mount and of course a removable sun shield for those sunny days. FieldView monitors have set a high standard in the FPV community and the new 1212 is no exemption.
Specifications:
• Image: 12.1" TFT LCD LED
• Resolution: 800x600
• Input resolution up to 1920x1440
• Horizontal frequency range: 30-60KHz
• Field frequency range: 60-75Hz
• Pixel Size: 0.2175(H)x0.2175(V)m
• Display Ratio: 4:3
• Brightness: 330cd/m²
• Viewing Angle: 70°/70°(L/R) 50°/70°U/D
• Contrast Ratio: 900:1
• Response time: 30ms
• Input Voltage: DC6-24V
• Power Consumption: 8W
• Input Signal: VGA,AV1,AV2,Audio,DVI,HDMI
• NTSC/PAL Manually Selectable in Menu
• Working Temperature: -10~50c
• Storage Temperature: -20~60c
• Size: 298L×245W×45Dmm
• Weight: 1130g without cables or sun shield, 1330g with cables and sun shield

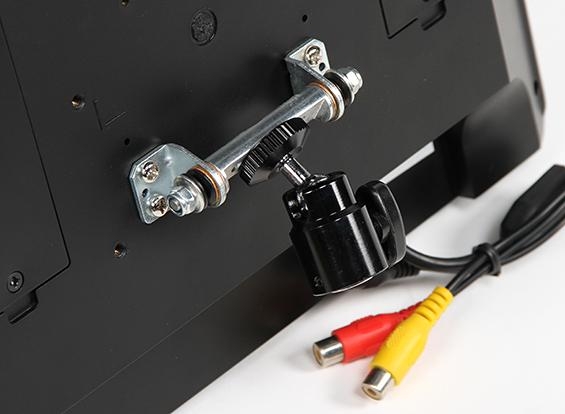

• Mounting: Standard 1/4-20 tripod and VESA mounts

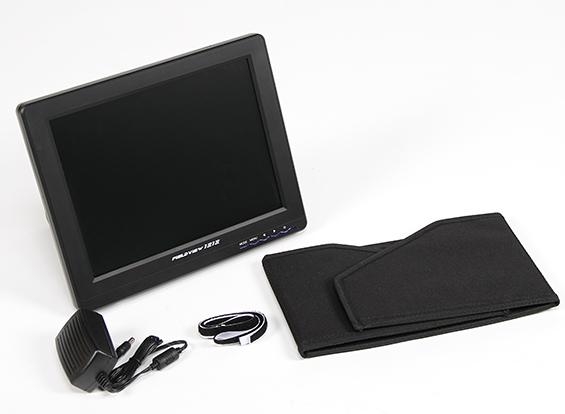

Includes:
12.1" LCD Monitor
Sun Shield with Velcro Strips
12V 1200mA power supply with US prongs, accepts 100-240V, 50/60Hz
A/V Cable with 1 Composite Input, 1 Audio Input (mono), 1 Power input (2.1mm barrel)
Manual
