FPV Radio Telemetry Kit - 915Mhz

This Radio Telemetry kit offers a great low price, longer range (approx one mile with supplied antennas) and superior performance. The system utilizes the 915Mhz band and provides a full-duplex link using HopeRF's HM-TRP modules running custom, open source, firmware.

The SiK firmware includes a bootloader that permits radio firmware upgrades over the serial interface, and configuration of system parameters. Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through the 3DR Radio configurator and AT commands.

Interface to the module is via standard 5V-tolerant TTL serial / FT232 USB serial.

Features:
• Very small size
• Light weight (under 4 grams without antenna)
• 915Mhz frequency band
• Receiver sensitivity to -117 dBm
• Transmit power up to 20dBm (100mW)
• Transparent serial link
• Air data rates up to 250kbps
• Range of approx 1 mile with supplied antennas
• Demonstrated range of several kilometers with a small omni antenna
• Can be used with a bi-directional amplifier for even more range
• MAVLink protocol framing and status reporting
• Frequency hopping spread spectrum (FHSS)
• Adaptive time division multiplexing (TDM)
• Support for LBT and AFA
• Configurable duty cycle
• Built in error correcting code (can correct up to 25% data bit errors)
• Open source firmware
• AT commands for radio configuration
• RT commands for remote radio configuration
• Adaptive flow control when used with APM
• Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.


Specs:
Band: 915MHz
Antenna connectors: RP-SMA connector
Output power: 100mW (20dBm), adjustable between 1-20dBm
Sensitivity: -117dBm sensitivity
Interface: Standard TTL UART
Connection status: LED indicators

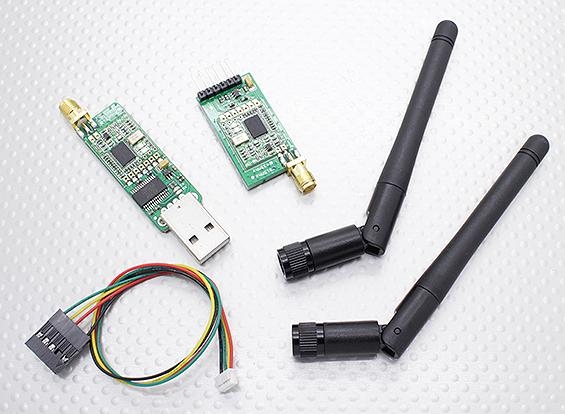

Includes:
Radio Telemetry base station (USB Connection)
Telemetry Transceiver (Pin Header)
lead set x1
Antenna x 2

This product is based on the 3DRadio Project from 3D Robotics
