FPV Transmitter & 1/3-inch CCD camera PAL (520TVL)

Compatible with most 2.4Ghz video receiver systems this FPV camera and transmitter system is very versatile as well as light and very small.

The camera uses a quality glass lensed SONY CCD camera system.

Unlike other generic systems, we have produced a wiring loom and included it with the camera so that the Tx and camera will be compatible and on the same voltage.

If you buy your camera and Tx seperately the plug polarity and voltages may be very different.

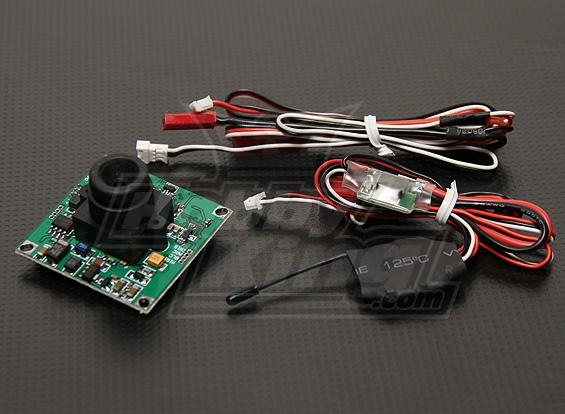

Included.
1 x SONY CCD 1/3inch Camera
1 x Voltage Regulator (input 3S battery)
1 x Micro Light Weight Video Transmitter (100mW)

Camera spec.
Image device: 1/3-inch Sony super HAD color CCD
Pixel: 752 x 582(PAL)
Synchronization: Internal synchronization
Horizontal resolution: 520TV Lines
Minimum Illumination: 0.1Lux/F1.2
S/N Ratio: Greater than 48dB(AGC OFF/B/W OFF)
White balance: Auto Tracking White Balance
Auto backlight compensation: On/OFF switchable
Lens: 3.6-6mm
Input voltage: DC12V
Electric current: 80MA±5MA
Electronic Shutter: Auto
PAL: 1/50 to 1/100,000 seconds
Video output: 1.0Vp~p75ω
Operation Temp.: -10~+50?
Size: 38 x 38
Power supply: 12V/150mA

FPV Tx Spec.
Power: 100mW
Voltage Regulator: 3S -> 5v
Without voltage regulator: 2~6V
Weight: 8g
Channels: 4

Usage: 1 x 3S lipoly will power the camera and via the voltage regulator it will power the Tx on 5v. You will need a 2.4Ghz video receiving unit to receive the image. We do not include the 2.4Ghz Rx unit because there are many different types and styles available and bundling them together will not suit most customers.
