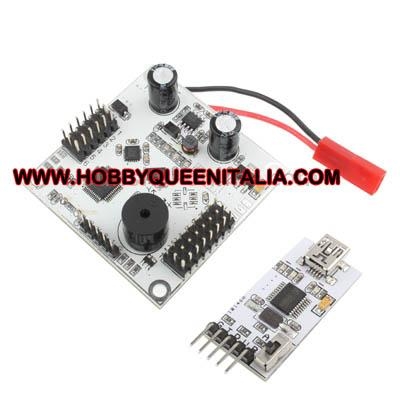

Free Flight FF Auto Balance Controller with 3D Acceleration Sensor For QuadCopter

1) 100% brand new free flight controller, four axis Free Flight FF Auto Balance

2) Controller,it can be used without debugging.

3) Support 8 channel PWM input and Six channel PWM output

4) Adopts three axis digital gyroscope and three axis digital accerleration sensor.

5) Auto-balance,quadcopter X or+mode

6) Support commercial ESC and I2C ESC,Practical free flight controller

7) Support aerial photography and Dual axle stabilization PTZ

8) with beep function when voltage is lower than 10.8V

9) this free flight controller recommend work with GWS 3-blade paddles or other high performance balance paddles

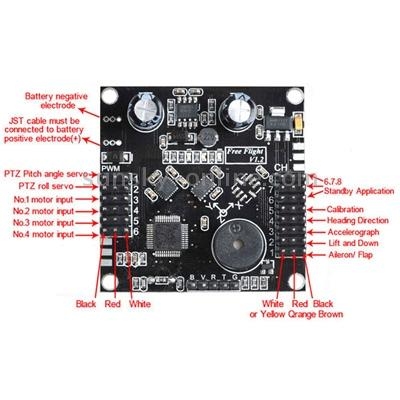

* Wire Connection:

1) Input CH: 1, Aileron/ flap 2 Lift and down 3,accelerograph 4,Heading Direction 5,Remote control calibration( Switch channel) 6,PTZ pitch angle 7, PTZ pitch angle trimming(ratio CH input)

2) Output CH(PWN): 1, PTZ Pitch angle servo 2, PTZ roll servo, 3, No.1 motor input 4,No.2 motor input 5, No.3 motor input 6,No.4 motor input

* Dual axis PTZ:

- It maintains verticality mode under 6CH Auto-mode.It can be trimming by button 7 to adjust angle.
